MPI™ MAB Series Electric Actuator - 240VAC
MPI™ MAB Series Electric Actuator - 240VAC
SKU:VAL-4e1e6b
Reliable MPI™ MAB Series Electric Actuator with CE & CSA approval for automated valve operation in challenging environments.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240VAC
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240VAC
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automated valve operation in demanding environments. With an operating temperature range of -4oF to 158oF, this actuator features a powder-coated aluminum housing for durability. It is CE and CSA approved, explosion-proof, and designed to comply with NEMA 7 standards, making it suitable for various applications. The actuator can interface with control systems, offering seamless integration and monitoring capabilities. Ideal for laboratories, pilot plants, chemical research, and more.
Product Specifications

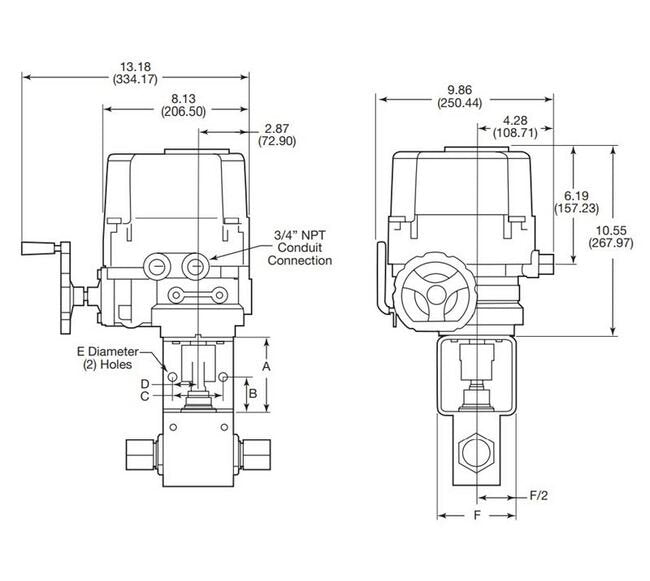

Dimensions A
3.00 in
Dimensions Actuator Height
10.55 in
Dimensions Actuator Length
13.18 in
Dimensions Actuator Width
9.86 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
