The MPI™ MAB Series Electric Actuator is a high-performance solution designed for precise control and automation of valves in various industrial applications. Operating at temperatures ranging from 0oF to 160oF (-18oC to 71oC), this actuator features a durable powder-coated aluminum housing and is CE & CSA approved for NEMA 4 and 4x standards, ensuring reliable performance in harsh environments. With a 1/2" NPT female conduit connection and manual override capability, this actuator provides flexibility and ease of maintenance. It interfaces seamlessly with control systems for automated operation and monitoring, making it ideal for laboratories, pilot plants, chemical research facilities, and more.
Product Specifications

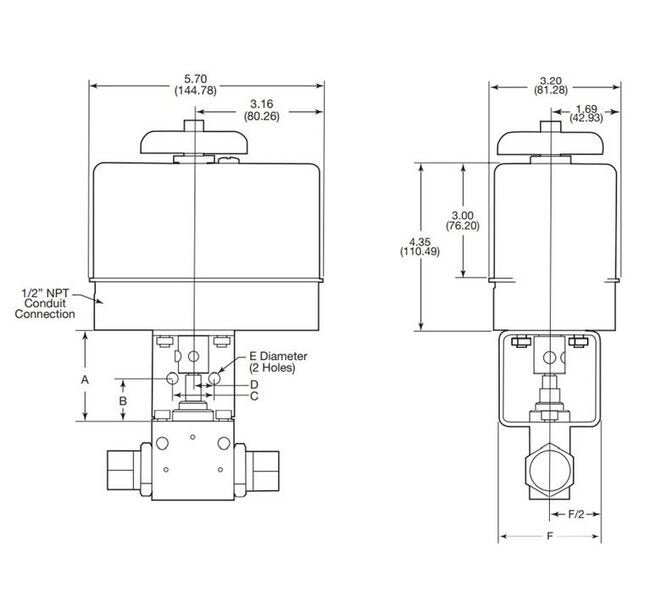

Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
