MPI™ MAB Series Electric Actuator
MPI™ MAB Series Electric Actuator
SKU:VAL-c1983c
Efficient and reliable MPI™ MAB Series Electric Actuator for automated operation and monitoring in industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automated operation and monitoring in a wide range of industrial applications. With a durable powder-coated aluminum housing and CE & CSA certifications for NEMA 4 and 4x ratings, this actuator ensures reliable performance in diverse environments. It features a 1/2'' NPT female conduit connection and manual override for added flexibility. Operating at temperatures ranging from 0°F to 160°F (-18°C to 71°C), this actuator interfaces seamlessly with control systems, offering efficient and precise control. Suitable for laboratories, chemical research, and more, this actuator guarantees safe and efficient operation.
Ready to Grow Without Cash Flow Constraints?

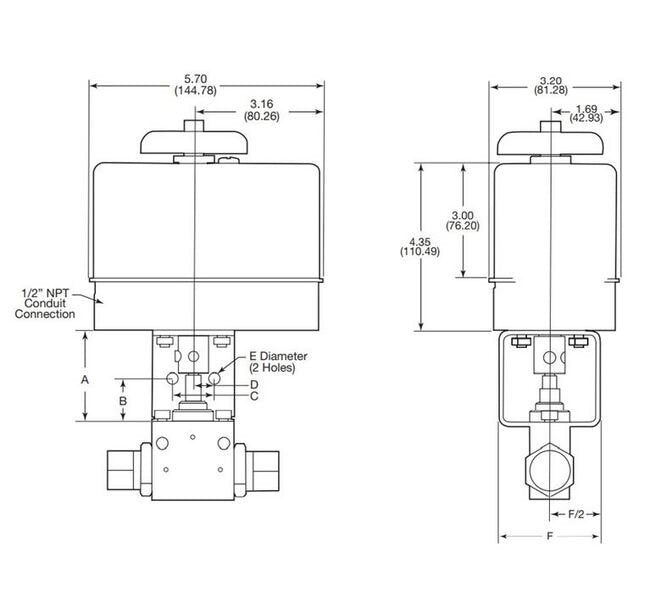

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
