MPI™ MAB Series Electric Actuator for Ball Valves - 240VAC
MPI™ MAB Series Electric Actuator for Ball Valves - 240VAC
SKU:VAL-9923f6
Automate valve operations with the MPI™ MAB Series Electric Actuator - reliable, CE & CSA approved, ideal for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator for Ball Valves - 240VAC
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator for Ball Valves - 240VAC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automating ball valves in various industrial applications. Operating between 0oF to 160oF, this actuator features a powder-coated aluminum housing that is CE & CSA approved for NEMA 4 and 4x. With a manual override and 1/2" NPT female conduit connection, it offers seamless integration with control systems for automated operation and monitoring. Suitable for laboratories, pilot plants, chemical research facilities, and more, this actuator ensures efficient and precise valve control.
Product Specifications

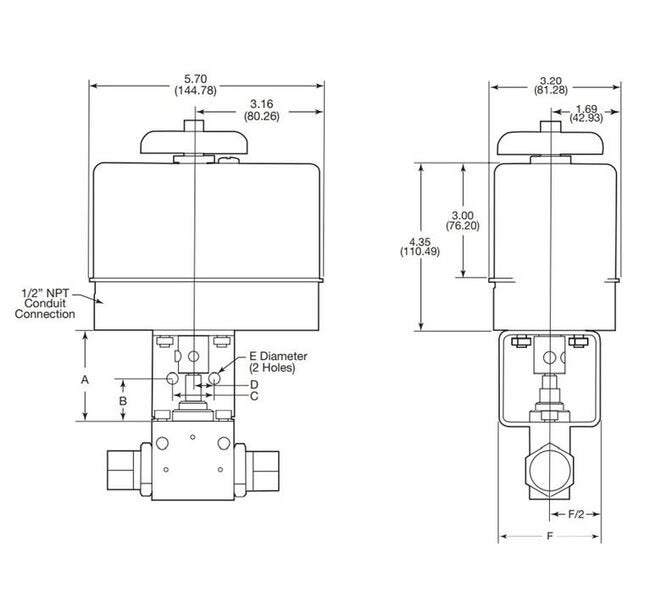

Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
