Enhance your industrial valve systems with the MPI™ MAB Series Electric Actuators. This electric 24 VDC actuator features a powder-coated aluminum housing, CE & CSA approvals, NEMA 7 Explosion Proof design, and ATEX certification. With a manual override and an explosion-proof enclosure, this actuator ensures reliable operation in demanding environments. Interface with control systems for automated operation, making it ideal for laboratories, pilot plants, and chemical research applications.

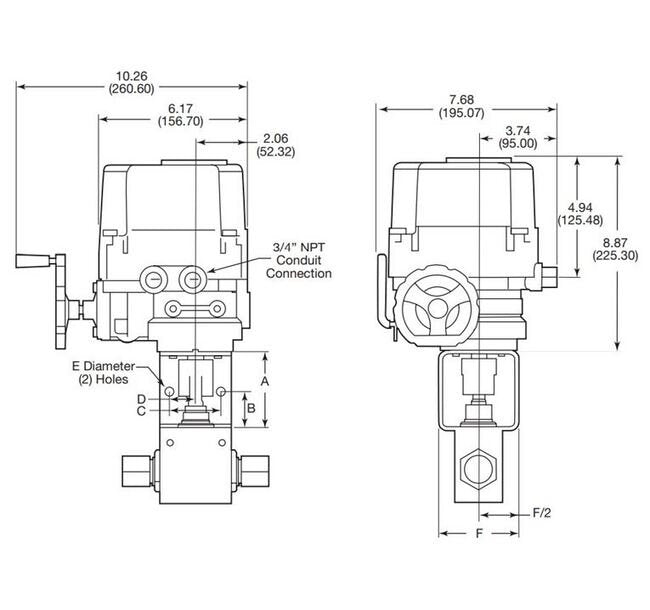

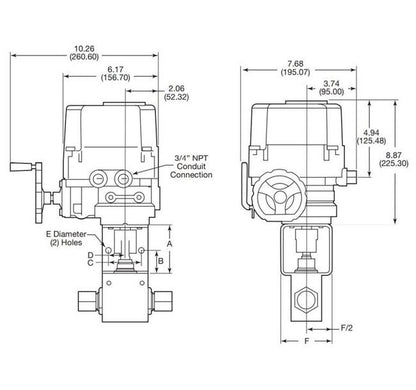

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
