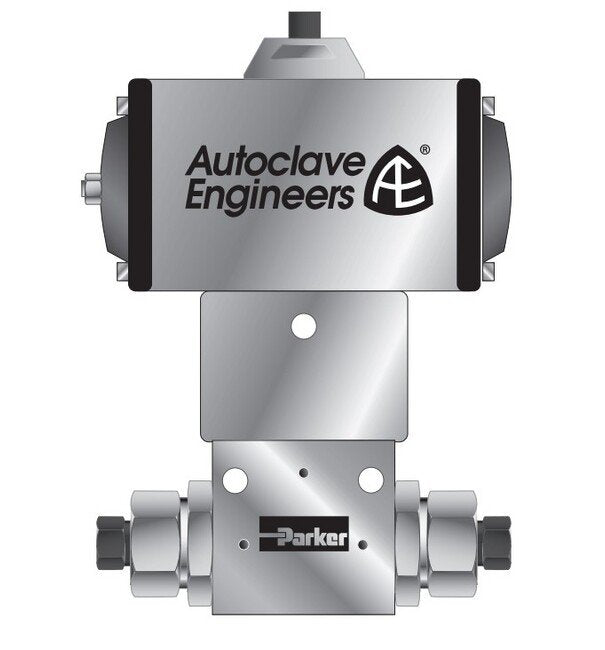

The MPI™ MAB Series Pneumatic Actuators by Parker offer reliable automated operation for industrial applications. These actuators can be paired with MAB Series ball valves for seamless integration, providing precise control over various media flow. With options for air-to-open/spring-to-close, air-to-close/spring-to-open, and double-acting operations, these actuators ensure optimal performance in diverse environments. Featuring an expanded temperature range from -40 to 500°F, optional limit switches for position indication, and a choice of housing materials including anodized aluminum and stainless steel for corrosive conditions, these actuators are versatile and durable for laboratories, chemical research facilities, and other industrial settings.

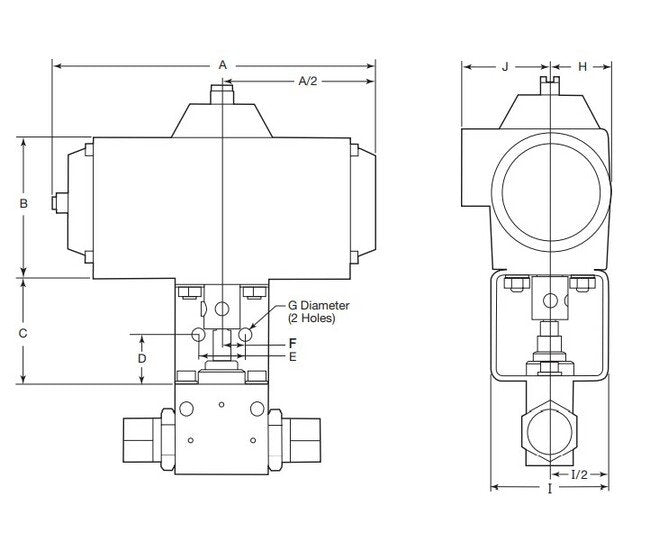

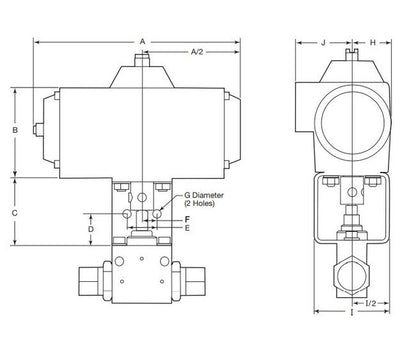

Product Specifications
Dimensions A
6.85 in
Dimensions Air Usage
18.1 in²
Dimensions B
3.20 in
Dimensions C
3.00 in
Dimensions D
1.50 in
Dimensions E
1.00 in
Dimensions F
.50 in
Dimensions G
.28 in
Dimensions H
1.30 in
Dimensions I
3.00 in
Dimensions J
1.88 in
Dimensions Turn Time
1.0 sec
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Air-to-open/spring-to-close (FC)Air-to-close/spring-to-open (FO) Air-to-open and close (double acting) (AD)Position Indication - Standard, Limit Switches optionalExpanded Temperature Range, -40 to 500°F with Silicone Seals availableStandard anodized aluminum housingStainless steel housing for corrosive applications available.Optional epoxy coated housing available
