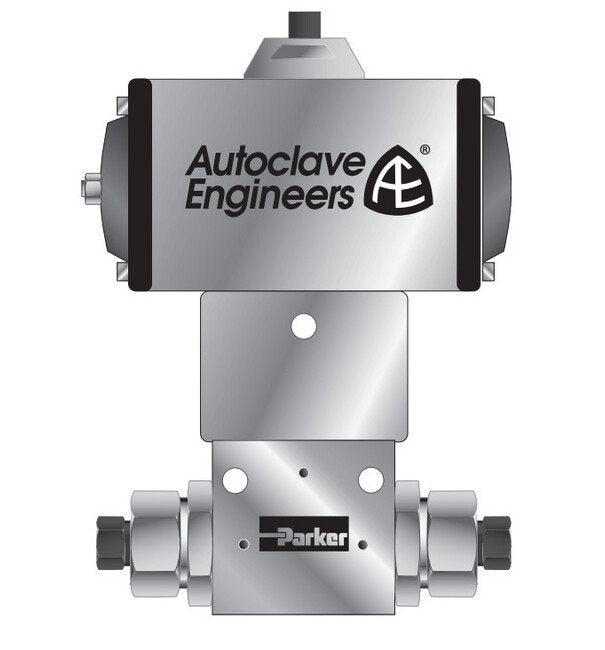

MPI™ MAB Series Pneumatic Actuators
MPI™ MAB Series Pneumatic Actuators
SKU:VAL-663be0
Reliable MPI™ MAB Series Pneumatic Actuators for precise and efficient valve automation.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Pneumatic Actuators
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Pneumatic Actuators
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Pneumatic Actuators by Parker offer reliable and precise automation for your valves. These actuators, compatible with MAB Series ball valves, come in pneumatic operation and are designed for quick, efficient open/close cycles. With features like air-to-open and close (double acting), temperature range from -10°F to 176°F (-23°C to 80°C), and options for limit switches and visual indicators, these actuators ensure optimal performance in industrial applications. The anodized aluminum housing provides durability while the option for high-temperature actuator ensures versatility in various settings.

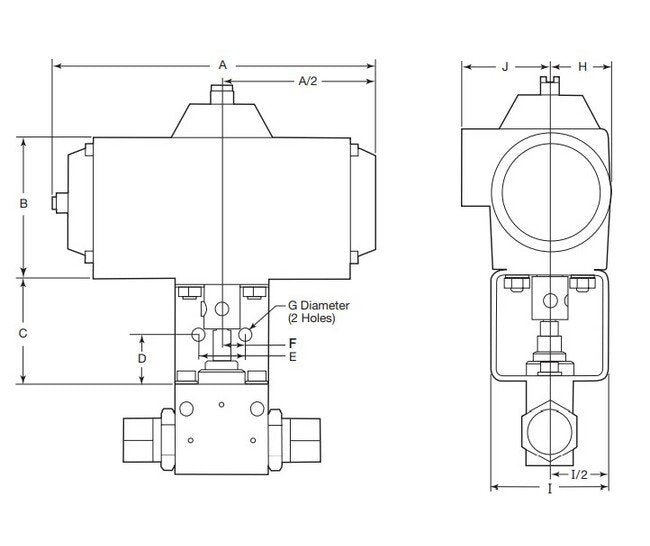

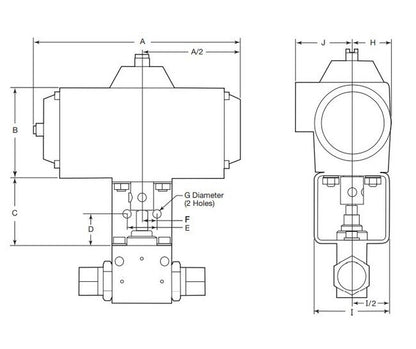

Product Specifications
Dimensions A
6.85 in
Dimensions Air Usage
44.4 in²
Dimensions B
3.20 in
Dimensions C
3.00 in
Dimensions D
1.50 in
Dimensions E
1.50 in
Dimensions F
.75 in
Dimensions G
.34 in
Dimensions H
1.30 in
Dimensions I
3.00 in
Dimensions J
1.88 in
Dimensions Turn Time
0.5 sec
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Air-to-open/spring-to-close (FC)Air-to-close/spring-to-open (FO) Air-to-open and close (double acting) (AD)Position Indication - Standard, Limit Switches optionalExpanded Temperature Range, -40 to 500°F with Silicone Seals availableStandard anodized aluminum housingStainless steel housing for corrosive applications available.Optional epoxy coated housing available
