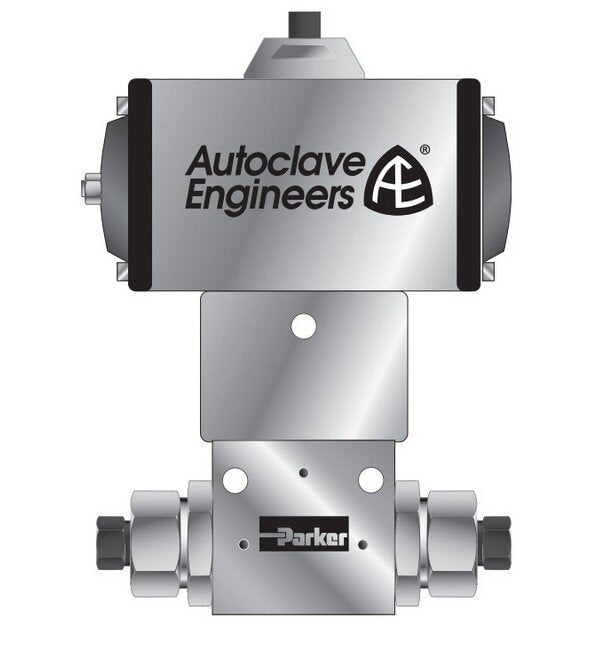

Upgrade your automated operations with the reliable and trouble-free Parker MPI™ MAB Series Pneumatic Actuators. These actuators, designed for use with ball valves, offer adaptable pneumatic operators with standard anodized aluminum housing. With features like air-to-close/spring-to-open or air-to-open/spring-to-close functionality, expanded temperature range capabilities, and optional limit switches, these actuators are ideal for laboratories, chemical research, and high-volume chemical injection skids. Enhance your systems' performance with corrosion-resistant, high-quality actuators that meet stringent industry standards.
Product Specifications

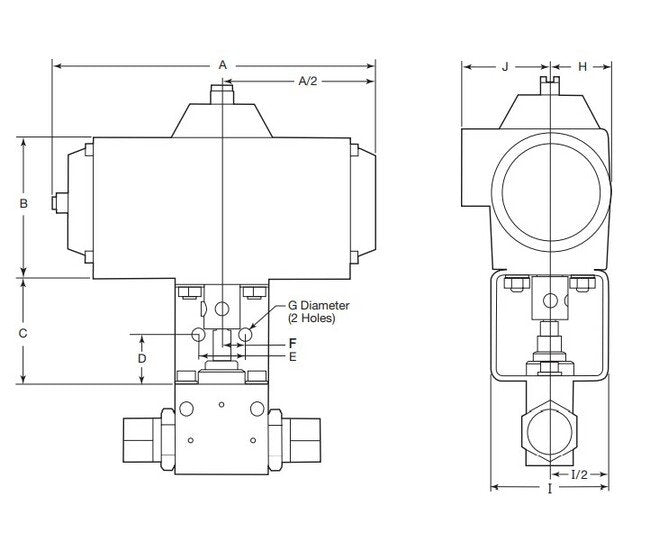

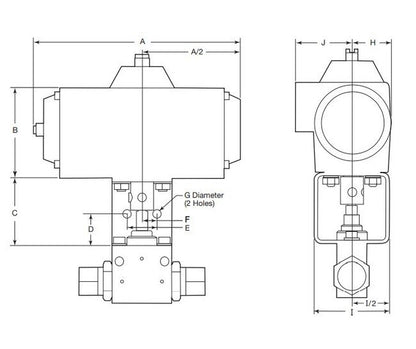

Dimensions A
9.38 in
Dimensions Air Usage
18.1 in²
Dimensions B
4.62 in
Dimensions C
3.00 in
Dimensions D
1.50 in
Dimensions E
2.00 in
Dimensions F
1.00 in
Dimensions G
.56 in
Dimensions H
2.00 in
Dimensions I
3.00 in
Dimensions J
2.48 in
Dimensions Turn Time
1.0 sec
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Air-to-open/spring-to-close (FC)Air-to-close/spring-to-open (FO) Air-to-open and close (double acting) (AD)Position Indication - Standard, Limit Switches optionalExpanded Temperature Range, -40 to 500°F with Silicone Seals availableStandard anodized aluminum housingStainless steel housing for corrosive applications available.Optional epoxy coated housing available
