MPI™ MAB Series Valves - 2-Way Ball Valves
MPI™ MAB Series Valves - 2-Way Ball Valves
SKU:VAL-074dd4
Reliable MPI™ MAB Series 2-Way Ball Valves for high-pressure applications with durable design and versatile end connections.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Valves - 2-Way Ball Valves
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Valves - 2-Way Ball Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

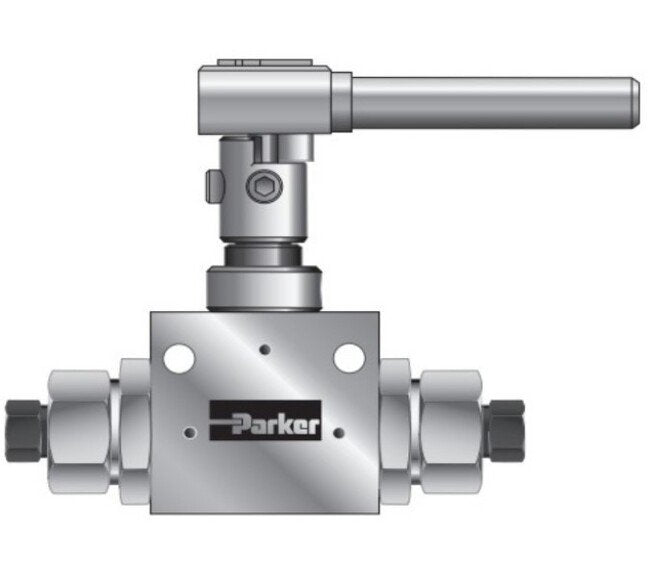

The MPI™ MAB Series Valves offer reliable manual, pneumatic, and electrically actuated 2-way and 3-way ball valves designed for quarter and half-turn media shutoff or switching applications, with a maximum pressure capacity of 15,000 psi. Featuring a single-piece trunnion style ball design and re-torqueable seats, these valves are ideal for severe service applications. The valves come with various end connection options to suit specific customer needs, and their features include a full port flow path for minimal pressure drop, low friction stem seals for increased cycle life, and a wide temperature range from 0°F to 400°F (up to 500°F option). Built with quality materials like CW 316 Stainless Steel (standard) and 2507 Annealed Super Duplex (optional), these valves ensure durability, reliability, and optimal performance.
Ready to Grow Without Cash Flow Constraints?

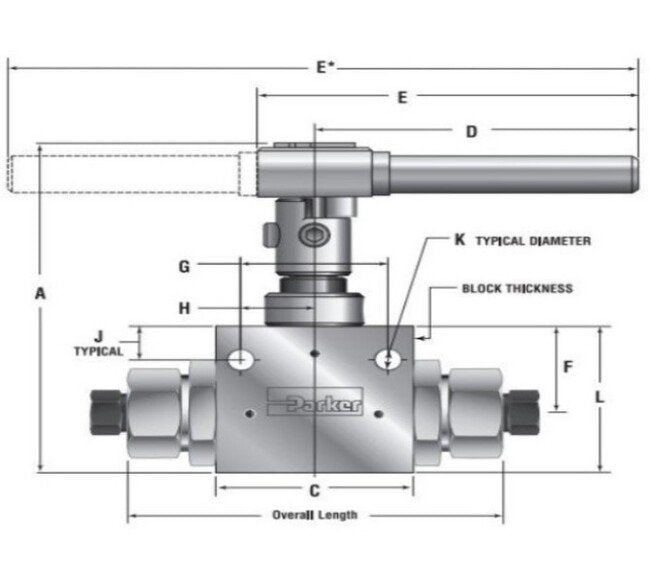

Product Specifications
Dimensions A
10.13 in
Dimensions Block Thickness
3.00 in
Dimensions C
4.50 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
11.80 in
Dimensions D
11.00 in
Dimensions E
22.00 in
Dimensions F
2.47 in
Dimensions G
3.25 in
Dimensions H
1.63 in
Dimensions J
.69 in
Dimensions K
.41 in
Dimensions L
4.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.53 in
Dimensions Orifice Size
3/4 in
Dimensions Overall Length
9.18 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B12S
