MPI™ MAC and MACB Check Valves Set
MPI™ MAC and MACB Check Valves Set
SKU:VAL-c9338c
Enhance flow control with MPI™ MAC and MACB Check Valves. Robust, reliable, and temperature-resistant valves ensuring optimal performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MPI™ MAC and MACB Check Valves Set
$49.99
Quantity: 1
Claim Your Seller Account
MPI™ MAC and MACB Check Valves Set
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

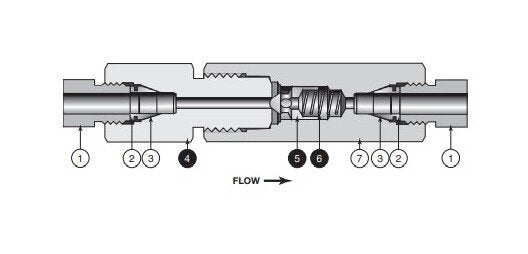

The MPI™ MACB series features a robust Ball Check Valve ideal for preventing reverse flow without a mandatory leak-tight shut-off. Designed with all-metal components for temperatures up to 1000°F, this valve ensures positive, in-line seating with an integral ball and poppet design. Conversely, the MPI™ MAC series offers reliable unidirectional flow and tight shut-off for liquids and gases. With a cracking pressure of 20 psi, this O-Ring Check Valve guarantees optimal performance. Suitable for various temperature ranges, these valves offer exceptional performance and durability for industrial applications.
Product Specifications

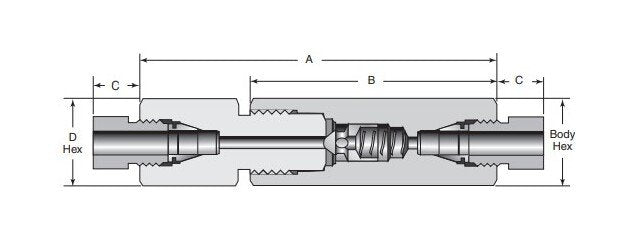

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R8MAC-2507
Dimensions Tubing Od
1/2
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
