MPI™ MADBN Series Double Block and Bleed Needle Valve
MPI™ MADBN Series Double Block and Bleed Needle Valve
SKU:VAL-2e0d3f
MPI™ MADBN Series Double Block and Bleed Needle Valve: High-pressure valve with 9/16 MPI™ connection, .093 in orifice, and durable construction.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
MPI™ MADBN Series Double Block and Bleed Needle Valve
$99.99
Quantity: 1
Claim Your Seller Account
MPI™ MADBN Series Double Block and Bleed Needle Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MADBN Series Double Block and Bleed Needle Valve is designed for high-pressure applications up to 15000 psi. This valve features a 9/16 MPI™ connection, with precise .093 in orifice ensuring optimal flow control. With dimensions meeting stringent standards, including a durable construction, this valve provides reliable performance and easy maintenance. Suitable for 316 SS or 2507 Super Duplex tubing, incorporating XF Ferrules for enhanced efficiency. All vent connections are 1/4" NPT, offering versatile installation options for various industrial needs.

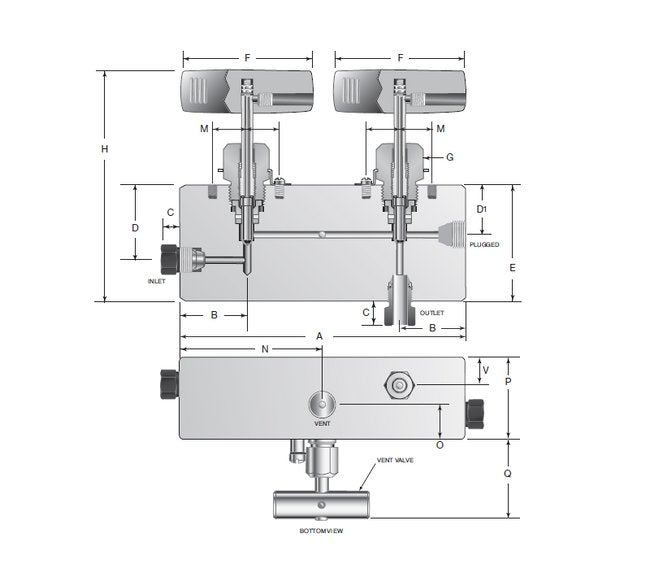

Product Specifications
Dimensions A
7.50 in
Dimensions B
1.50 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D
2.38 in
Dimensions D1
1.75 in
Dimensions E
3.58 in
Dimensions F
4.00 in
Dimensions G
1.00 in
Dimensions H
6.63 in
Dimensions M
.69 in
Dimensions N
3.75 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
