The MPI™ MADBN Series Double Block and Bleed Needle Valves offer unparalleled reliability in controlling flow and pressure. Operating at a maximum pressure of 15000 psi, these valves feature a 1/2 MPI™ connection, .093 in orifice, and precise dimensions ensuring optimal performance. Designed for durability, they are adaptable for use with both 316 SS and 2507 Super Duplex tubing, with XF Ferrules required for 3/4" and 1" sizes. Ideal for critical applications, these valves with 1/4" NPT vent connections ensure safety and efficiency.
Product Specifications

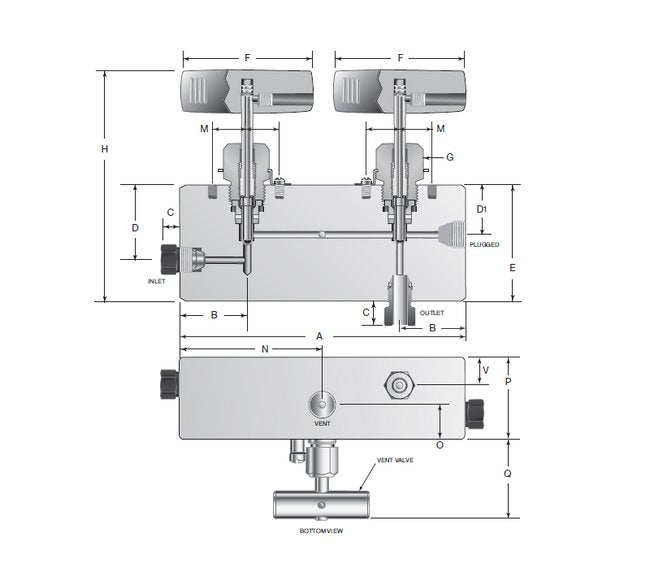

Dimensions A
7.50 in
Dimensions B
1.50 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
2.38 in
Dimensions D1
1.75 in
Dimensions E
3.58 in
Dimensions F
4.00 in
Dimensions G
1.00 in
Dimensions H
6.63 in
Dimensions M
.69 in
Dimensions N
3.75 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
