MPI™ MADBN Series Double Block and Bleed Needle Valves
MPI™ MADBN Series Double Block and Bleed Needle Valves
SKU:VAL-336d46
Precision-engineered MPI™ MADBN Series Double Block and Bleed Needle Valves for high-pressure applications, featuring 15000 psi pressure rating, XF Ferrules, and 1/4" NPT vent connections.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MADBN Series Double Block and Bleed Needle Valves
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MADBN Series Double Block and Bleed Needle Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MADBN Series Double Block and Bleed Needle Valves are expertly engineered to provide ultimate precision and reliability in fluid control applications. With a pressure rating of 15000 psi, these valves feature a 3/8 MPI™ connection and a .093 in orifice, ensuring optimal performance under high-pressure conditions. Equipped with XF Ferrules for 316 SS or 2507 Super Duplex Tubing, these valves guarantee a secure fit. The 1/4" NPT vent connections enhance operational efficiency. Designed with dimensions that meet industry standards, the MADBN Series valves are ideal for critical industrial processes requiring superior isolation and bleed capabilities.

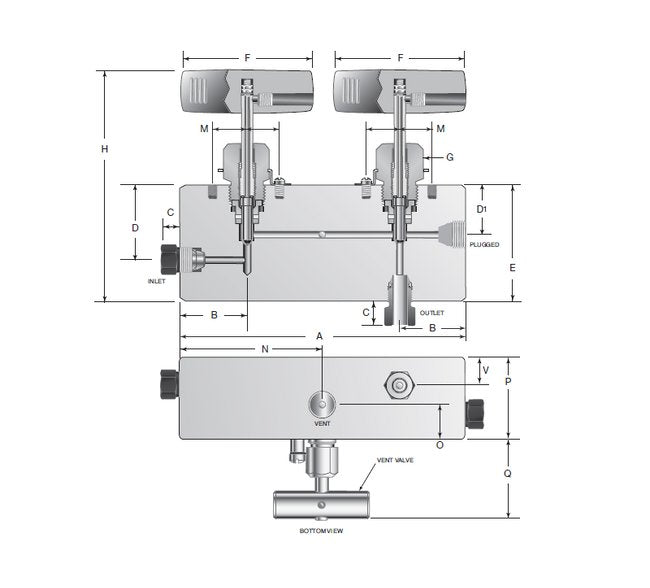

Product Specifications
Dimensions A
6.00 in
Dimensions B
1.38 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D
1.50 in
Dimensions D1
1.13 in
Dimensions E
2.38 in
Dimensions F
3.00 in
Dimensions G
1.00 in
Dimensions H
4.89 in
Dimensions M
.69 in
Dimensions N
3.00 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
