MPI™ MADBN Series Double Block and Bleed Needle Valves
MPI™ MADBN Series Double Block and Bleed Needle Valves
SKU:VAL-77ad7f
MPI™ MADBN Series Double Block and Bleed Needle Valves: High-pressure performance with 15000 psi rating and precise .093 in orifice size. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MPI™ MADBN Series Double Block and Bleed Needle Valves
$129.99
Quantity: 1
Claim Your Seller Account
MPI™ MADBN Series Double Block and Bleed Needle Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

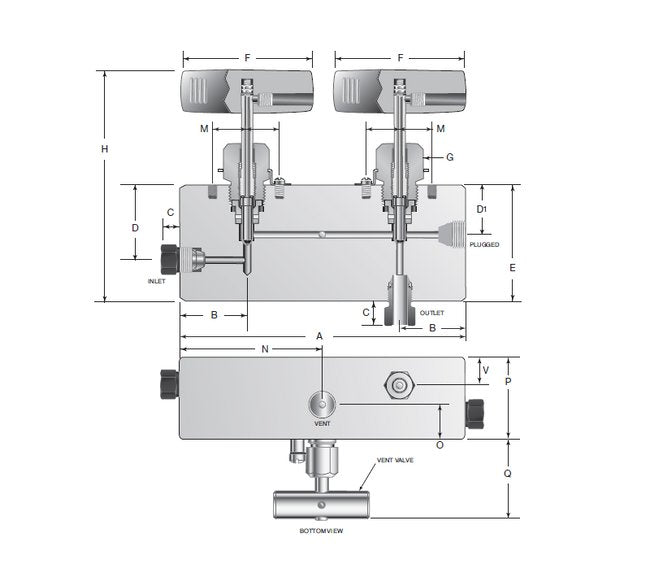

The MPI™ MADBN Series Double Block and Bleed Needle Valves are engineered for exceptional performance in high-pressure environments, with a maximum pressure rating of 15000 psi. Featuring a 1/4 MPI™ connection and precise orifice size of .093 inches, these valves ensure reliable isolation and venting capabilities. Crafted for durability, the valves are designed with dimensions that include A: 5.75 inches, B: 1.25 inches, C: 0.50 inches, D: 1.50 inches, and other critical measurements for seamless integration into industrial systems. With all vent connections at 1/4" NPT, these valves deliver superior functionality and efficiency.
Product Specifications
Dimensions A
5.75 in
Dimensions B
1.25 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.50 in
Dimensions D1
1.13 in
Dimensions E
2.38 in
Dimensions F
3.00 in
Dimensions G
1.00 in
Dimensions H
4.89 in
Dimensions M
.69 in
Dimensions N
2.88 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
