MPI™ MADBN Series Double Block and Bleed Needle Valves
MPI™ MADBN Series Double Block and Bleed Needle Valves
SKU:VAL-f19513
Discover MPI™ MADBN Series Valves - High-performance, 15000 psi pressure, ideal for critical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MPI™ MADBN Series Double Block and Bleed Needle Valves
$129.99
Quantity: 1
Claim Your Seller Account
MPI™ MADBN Series Double Block and Bleed Needle Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

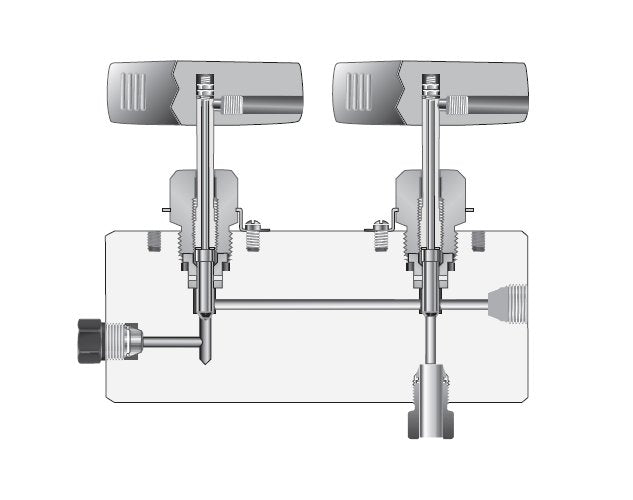

The MPI™ MADBN Series Double Block and Bleed Needle Valves are engineered for superior performance and reliability. Operating at a pressure of 15000 psi, these valves feature a 1/4 MPI™ connection and a precision-engineered orifice of .093 in. With robust dimensions and durable construction, including vent connections of 1/4" NPT, these valves ensure secure isolation and control in critical applications. Designed for 316 SS or high-grade 2507 Super Duplex Tubing, the MADBN Series guarantees precise flow control and safety compliance, making it an ideal choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

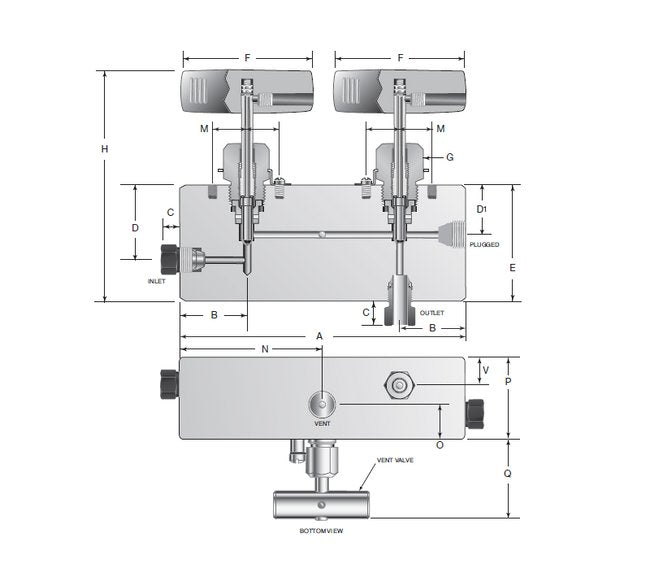

Product Specifications
Dimensions A
5.75 in
Dimensions B
1.25 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.50 in
Dimensions D1
1.13 in
Dimensions E
2.38 in
Dimensions F
3.00 in
Dimensions G
1.00 in
Dimensions H
4.89 in
Dimensions M
.69 in
Dimensions N
2.88 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
