MPI™ MAF Series Dual Disc Line Filter
MPI™ MAF Series Dual Disc Line Filter
SKU:VAL-d1e9f8
Parker's MPI™ MAF Series Dual Disc Line Filter - dual-disc design for efficient filtration in industrial and aerospace applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAF Series Dual Disc Line Filter
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAF Series Dual Disc Line Filter
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

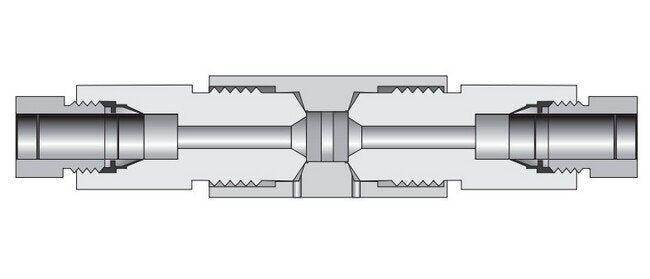

The MPI™ MAF Series Dual Disc Line Filter by Parker is a versatile solution designed for industrial, chemical processing, aerospace, and nuclear applications. Featuring a dual-disc design, this filter effectively traps large contaminant particles upstream, preventing clogs in downstream elements. With easy-to-replace filter elements and standard micron sizes of 35/65, this filter ensures efficient filtration and maintenance. Adhering to strict standards, the MAF Series guarantees reliable performance in diverse environments.
Product Specifications

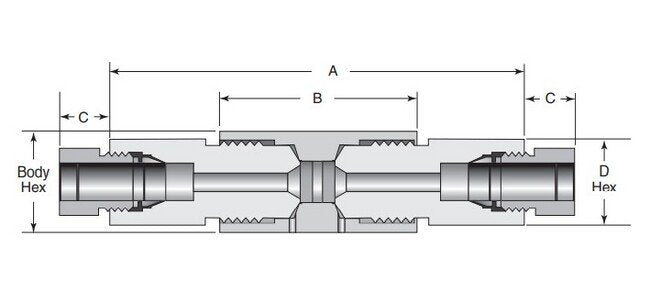

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
5/10
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
