MPI™ MAF Series Dual Disc Line Filter - 1/2" Tubing, 10/35 Micron Size
MPI™ MAF Series Dual Disc Line Filter - 1/2" Tubing, 10/35 Micron Size
SKU:VAL-5e8b7f
Enhance system performance with Parker's MPI™ Dual Disc Line Filter for industrial and aerospace applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MPI™ MAF Series Dual Disc Line Filter - 1/2" Tubing, 10/35 Micron Size
$249.99
Quantity: 1
Claim Your Seller Account
MPI™ MAF Series Dual Disc Line Filter - 1/2" Tubing, 10/35 Micron Size
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

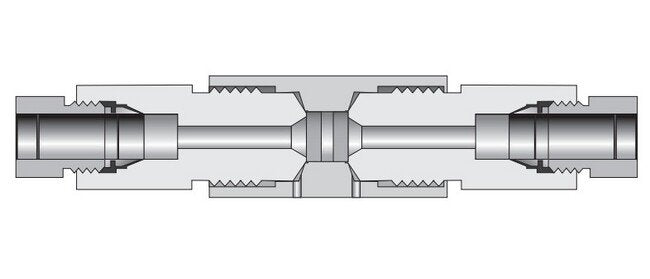

The MPI™ MAF Series Dual Disc Line Filter by Parker is a reliable solution for industrial, chemical, aerospace, and nuclear applications. Featuring a dual-disc design, this filter efficiently traps large contaminants with its upstream filter element, preventing clogs in downstream micron-size elements. With easy-to-replace filter elements and pressure rating of 15000 psi, this filter ensures clean and smooth operation.
Product Specifications

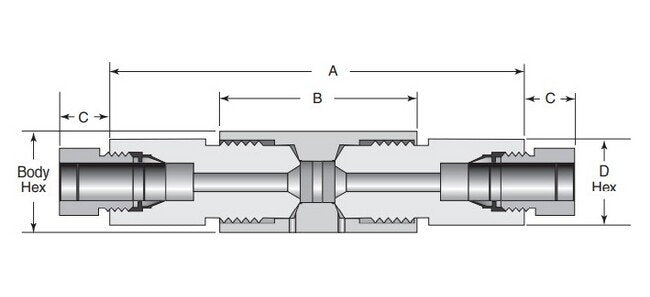

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
10/35
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/2
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
