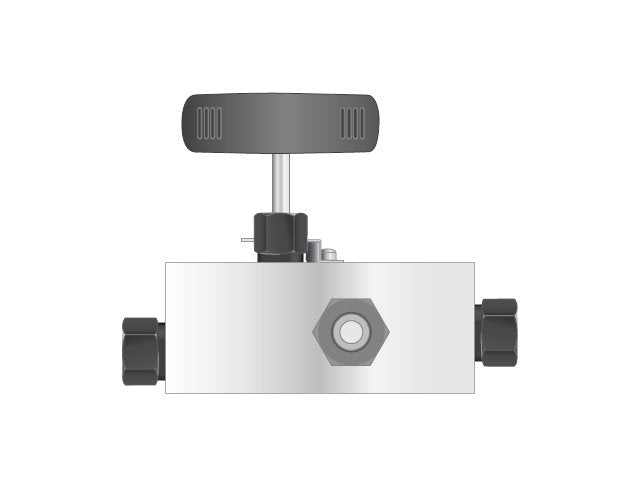

The MPI™ MAGV Series Single Block and Bleed Gauge Valve is a precision-engineered solution designed for seamless integration and enhanced control in industrial applications. This valve system includes a gauge valve and bleed valve that work in tandem, offering exceptional versatility and performance. Featuring a pressure rating of 15000 psi and a durable construction, this valve ensures reliable operation even in the most demanding environments. With flexible outlet placement options and compatibility with 316 SS or 2507 Super Duplex Tubing, the MAGV Series provides a customizable and efficient solution for fluid control systems.

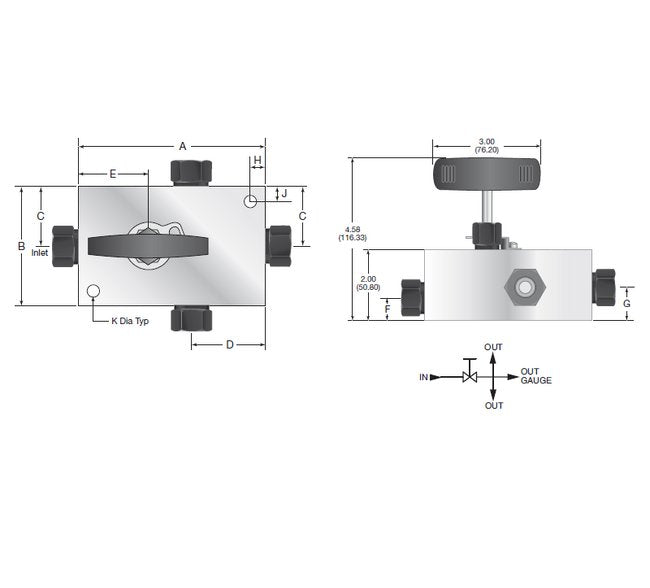

Product Specifications
Dimensions A
3.63 in
Dimensions B
2.50 in
Dimensions C
1.25 in
Dimensions Connection
3/8 MPI™
Dimensions D
1.39 in
Dimensions E
1.25 in
Dimensions F
.50 in
Dimensions G
.94 in
Dimensions H
.25 in
Dimensions J
.25 in
Dimensions K Dia
.28 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
