MPI™ MAN Series 2-Way Seat Valves with 15,000 psi Pressure Rating
MPI™ MAN Series 2-Way Seat Valves with 15,000 psi Pressure Rating
SKU:VAL-b53922
Precision and reliability meet in the MPI™ MAN Series 2-Way Seat Valves for pressures up to 15,000 psi. Ideal for liquid or gas media control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAN Series 2-Way Seat Valves with 15,000 psi Pressure Rating
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAN Series 2-Way Seat Valves with 15,000 psi Pressure Rating
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

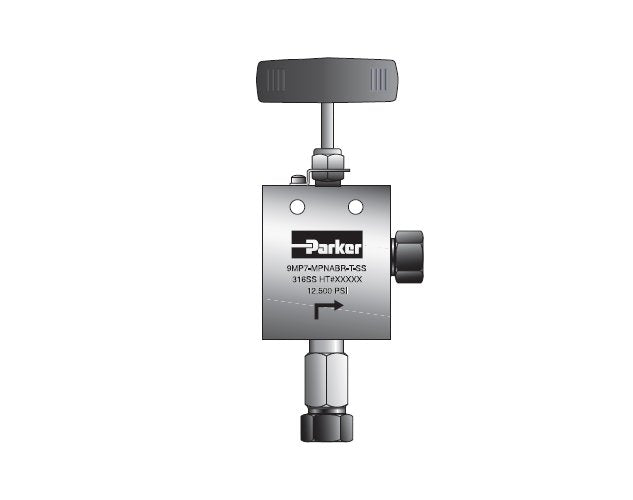

The MPI™ MAN Series 2-Way Replaceable Seat Valves by Parker offer precise multi-turn control of liquid or gas media at pressures up to 15,000 psi. Designed with a Double Ferrule connection for secure performance, these valves accommodate MPI™ tube sizes ranging from 1/4" to 1". Featuring a rising stem/barstock body design, non-rotating stem, and metal-to-metal seating for bubble-tight shut-off, these valves ensure durability, temperature performance from -423°F to 1000°F, and resistance to corrosive environments. Choose from Vee or Regulating Flow Stem Tips, with optional N-Dura Stem and Seat Coating or Stellite material for severe service applications.

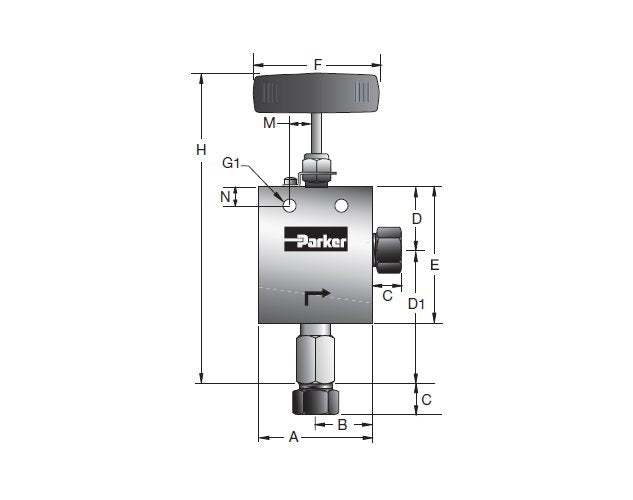

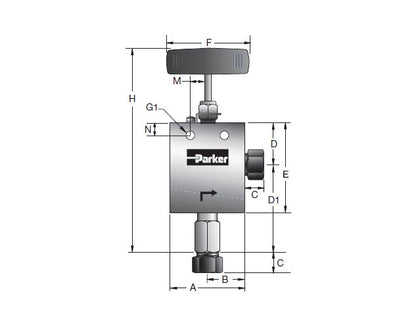

Product Specifications
Dimensions A
4.12 in
Dimensions B
2.06 in
Dimensions Block Thickness
1.75 in
Dimensions B Stem Repair Kit
R15SM12872
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D
2.25 in
Dimensions D1
3.88 in
Dimensions E
4.25 in
Dimensions F
10.35 in
Dimensions G1
.44 in
Dimensions H
9.30 in
Dimensions M
.88 in
Dimensions N
.62 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
4.2
Dimensions R Stem Repair Kit
R15SM12882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
