MPI™ MAN Series 3-Way/1 On-Pressure Valve
MPI™ MAN Series 3-Way/1 On-Pressure Valve
SKU:VAL-a1b396
Achieve precise liquid or gas media control with the MPI™ MAN Series 3-Way/1 On-Pressure Valve. Designed for exceptional durability and reliability in high-pressure applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
MPI™ MAN Series 3-Way/1 On-Pressure Valve
$199.99
Quantity: 1
Claim Your Seller Account
MPI™ MAN Series 3-Way/1 On-Pressure Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

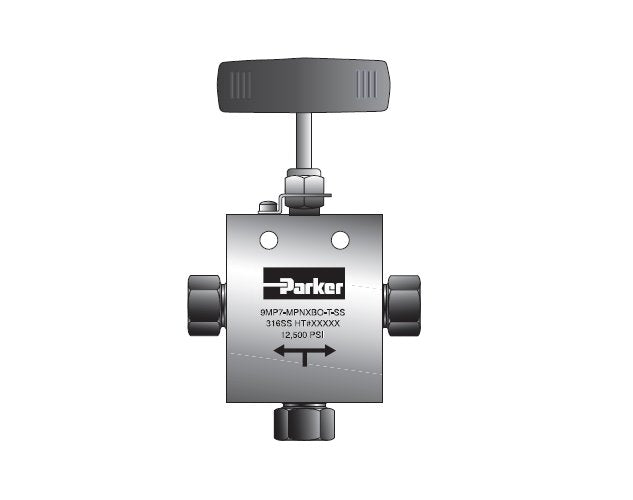

The MPI™ MAN Series 3-Way/1 On-Pressure Valve by Parker is engineered for precise multi-turn liquid or gas media control with shutoff or regulation options. With a double ferrule connection capable of handling pressures up to 15,000 psi, this valve ensures fast, reliable performance in various applications. Featuring MPI™ tube compatibility ranging from 1/4" to 1", five body patterns, and a temperature range from -423°F to 1000°F, this valve offers exceptional durability, temperature performance, and corrosion resistance. The non-rotating stem design prevents galling, while the metal-to-metal seating guarantees bubble-tight shut-off, making it ideal for demanding environments.

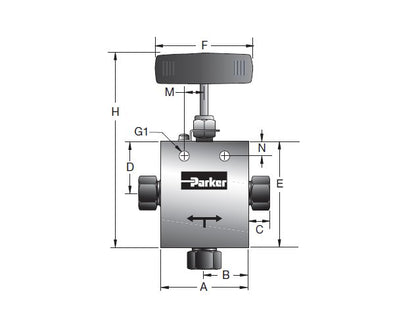

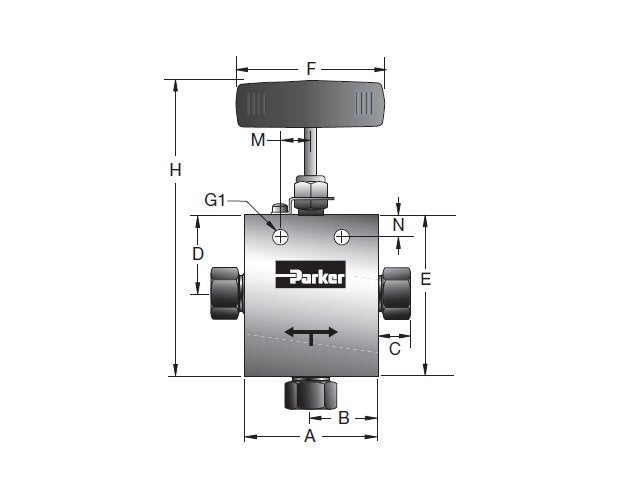

Product Specifications
Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
RSM907
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
1.75 in
Dimensions E
3.63 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
6.60 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.312 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
2.0
Dimensions R Stem Repair Kit
RSM908
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
