MPI™ MAN Series 3-Way/2 On-Pressure Valve
MPI™ MAN Series 3-Way/2 On-Pressure Valve
SKU:VAL-6fa5da
Control liquid or gas media efficiently with the MPI™ MAN Series 3-Way/2 On-Pressure Valve, rated up to 15,000 psi. Built for reliability and performance across temperature extremes.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
MPI™ MAN Series 3-Way/2 On-Pressure Valve
$259.99
Quantity: 1
Claim Your Seller Account
MPI™ MAN Series 3-Way/2 On-Pressure Valve
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

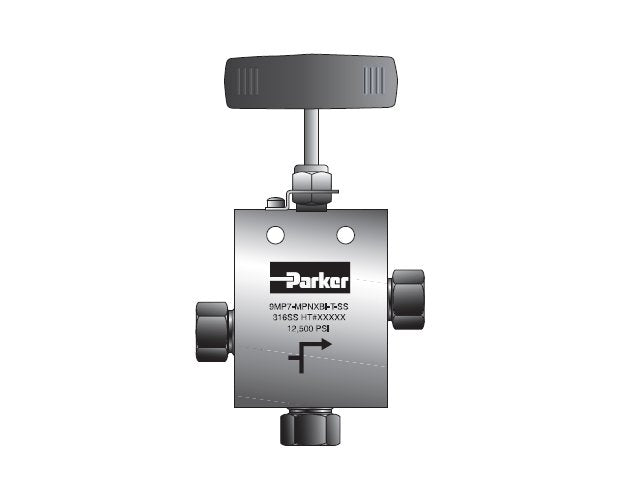

The MPI™ MAN Series 3-Way/2 On-Pressure Valve by Parker offers precise multi-turn control for liquid or gas media at pressures up to 15,000 psi. Featuring a Double Ferrule connection for reliable performance, this valve is designed for MPI™ tube sizes from 1/4" to 1". With material options including CW 316 Stainless Steel and 2507 Annealed Super Duplex, non-rotating stem design, and metal-to-metal seating for bubble-tight shut-off, this valve ensures durability, corrosion resistance, and exceptional performance in a wide temperature range from -423°F to 1000°F.
Product Specifications

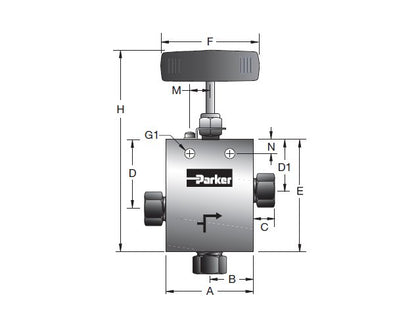

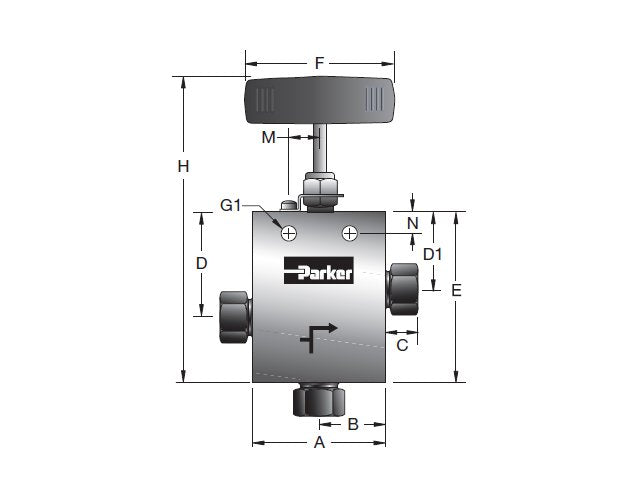

Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM407
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.63 in
Dimensions D1
1.19 in
Dimensions E
2.84 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.30 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.47
Dimensions R Stem Repair Kit
RSM408
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
