MPI™ MAN Series 3-Way/2-Stem Valve - 15,000 psi
MPI™ MAN Series 3-Way/2-Stem Valve - 15,000 psi
SKU:VAL-50fba4
Precision control up to 15,000 psi - Ideal for liquid or gas media - ASME Certified - Advanced features for durability
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
MPI™ MAN Series 3-Way/2-Stem Valve - 15,000 psi
$259.99
Quantity: 1
Claim Your Seller Account
MPI™ MAN Series 3-Way/2-Stem Valve - 15,000 psi
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

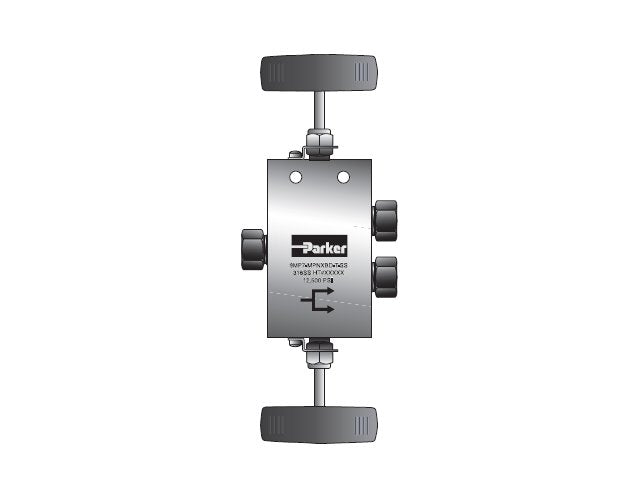

The MPI™ MAN Series 3-Way/2-Stem Valve by Parker offers precise multi-turn control for liquid or gas media at pressures up to 15,000 psi. With a Double Ferrule connection, this valve ensures fast, reliable performance in any service. Built for MPI™ tube sizes ranging from 1/4" to 1", it features various body patterns for versatile control options. Certified to meet ASME safety standards, it can be used with Pneumatically Actuated Valves for extensive operational ranges. This valve is equipped with advanced features such as non-rotating stem design, metal-to-metal seating, and superior temperature and corrosion resistance, making it ideal for demanding applications.
Product Specifications

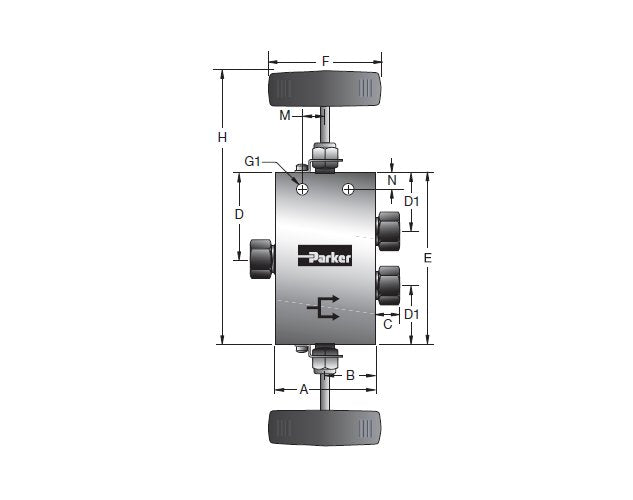

Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM6075
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D
1.69 in
Dimensions D1
1.19 in
Dimensions E
3.38 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.84 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.75
Dimensions R Stem Repair Kit
RSM6085
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
