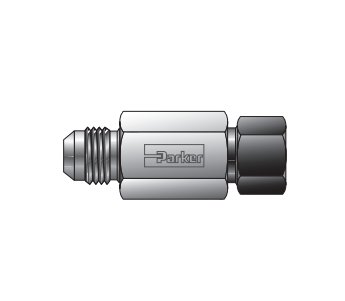

MPI™ Medium Pressure Flare Connector (XHBMP7)
MPI™ Medium Pressure Flare Connector (XHBMP7)
SKU:FIT-81b57a
Reliable MPI™ Medium Pressure Flare Connector for secure, gas-tight connections up to 15,000 psi. Easy to install and durable. ASME Standards compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
MPI™ Medium Pressure Flare Connector (XHBMP7)
$59.99
Quantity: 1
Claim Your Seller Account
MPI™ Medium Pressure Flare Connector (XHBMP7)
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ Medium Pressure Flare Connector (XHBMP7) is a reliable compression fitting connection developed by Parker Hannifin, ideal for various industries requiring operating pressures of up to 15,000 psi. This connector is suitable for handling liquids, gases, or chemicals and can be used with different tubing materials. Each Parker MPI™ Fitting comes complete with ferrules and a compression gland nut for easy installation, ensuring a secure and gas-tight connection. With features like corrosion-resistant ferrules, Molybdenum disulfide-coated nut, and ASME standards compliance, this connector offers durability, ease of assembly, and high performance, making it a preferred choice for demanding applications.
Product Specifications

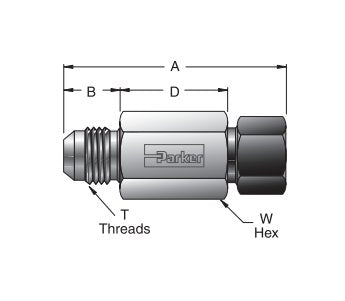

Dimensions 37 Flare Adapter
1/4
Dimensions A
2.08 in
Dimensions B
.55 in
Dimensions Connection Type
Straight Thread to MPI™
Dimensions D
1.03 in
Dimensions Mpi Size
1/4
Dimensions T Thread
7/16 - 20
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
5/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
