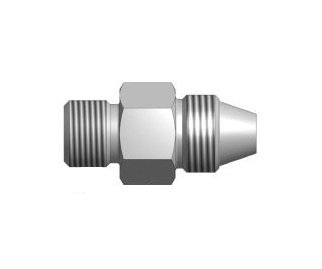

MPI™ Medium Pressure Tube Compression Fitting - M40HX44 Type "M" Male by X44 Male
MPI™ Medium Pressure Tube Compression Fitting - M40HX44 Type "M" Male by X44 Male
SKU:FIT-9a22ff
Secure & durable MPI™ Medium Pressure Tube Fitting – Ideal for high-pressure applications. ASME-compliant. Easy to install. Made of 316 SS or 2507 Super Duplex materials.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
MPI™ Medium Pressure Tube Compression Fitting - M40HX44 Type "M" Male by X44 Male
$55.99
Quantity: 1
Claim Your Seller Account
MPI™ Medium Pressure Tube Compression Fitting - M40HX44 Type "M" Male by X44 Male
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ Medium Pressure Tube Compression Fitting is a reliable and gas-tight connection system designed by Parker Hannifin, the original Patent Holder (US 6851729 B2). With a working pressure of up to 15,000 psi (1035 bar), these fittings are ideal for various industries like off-shore oil and gas exploration platforms, research labs, and facilities requiring high operating pressures. Each fitting comes complete with ferrules and compression gland nut for easy installation. Made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, these fittings adhere to ASME Standards ensuring quality, durability, and safety. Assembled with standard hand tools, they feature corrosion-resistant Parker Suparcase® ferrules, a longer thread area for improved pressure resistance, and a molybdenum disulfide-coated nut for easy assembly and multiple remakes.
Product Specifications

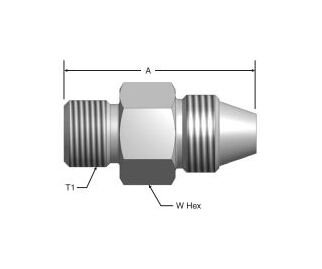

Dimensions A
1.79 in
Dimensions Connection Type
Straight Thread to Straight Thread
Dimensions Hose Adapter
-6
Dimensions T1 M Thread
9/16-18 UNF
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Thk
1 in
Dimensions X44 Adapter
9/16
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
