MPI™ to Male Run NPT Tee Fitting - RBMP7
MPI™ to Male Run NPT Tee Fitting - RBMP7
SKU:FIT-42cfc1
Secure MPI™ to Male Run NPT Tee Fitting for medium-pressure applications, compliant with ASME standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MPI™ to Male Run NPT Tee Fitting - RBMP7
$49.99
Quantity: 1
Claim Your Seller Account
MPI™ to Male Run NPT Tee Fitting - RBMP7
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

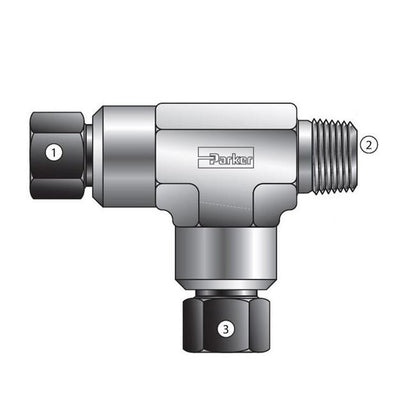

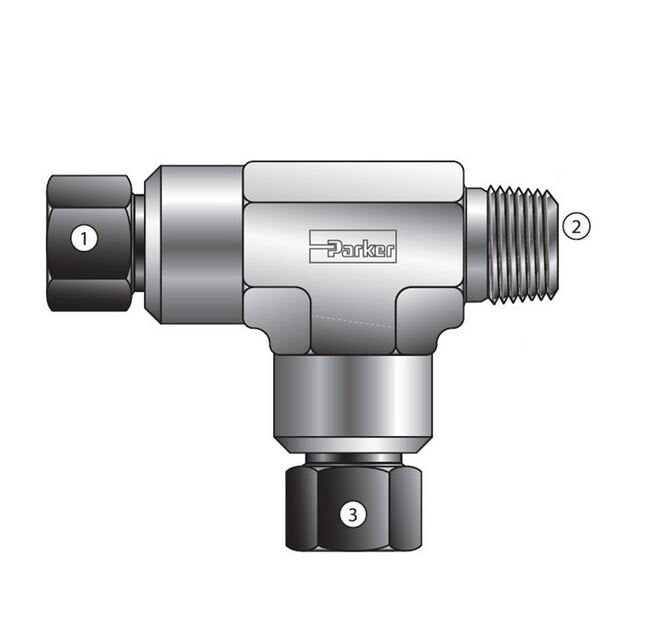

The MPI™ to Male Run NPT Tee Fitting RBMP7 by Parker Hannifin, a patented design, offers secure and reliable medium-pressure connections suitable for various industries. With a working pressure of 15000 psig, these MPI™ Fittings are ideal for handling liquids, gases, and chemicals. Made of high-quality Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, each fitting includes front and back ferrules, ensuring a gas-tight seal with excellent resistance to pressure and vibration. Compliant with ASME B31.1 Power Piping and B31.3 Process Piping standards, Parker MPI™ Fittings guarantee exceptional quality and performance.
Product Specifications

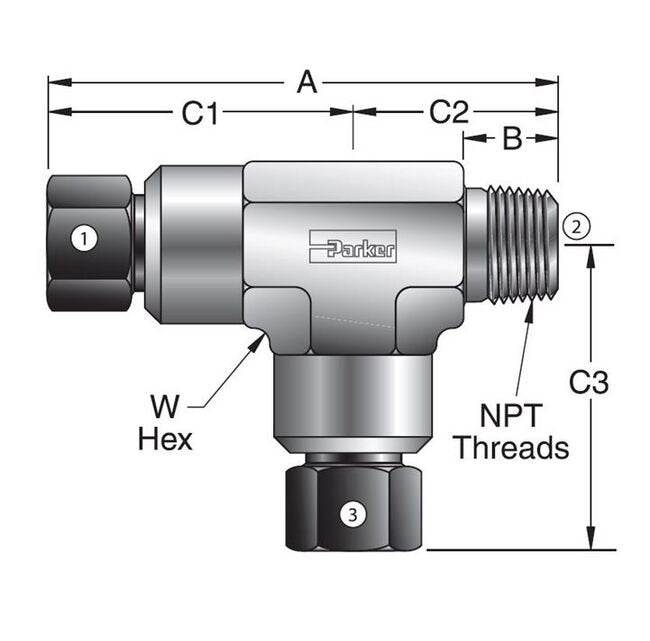

Dimensions A
2.76 in
Dimensions B
.57 in
Dimensions C1
1.63 in
Dimensions C2
1.13 in
Dimensions C3
1.63 in
Dimensions Connection Type
MPI™ x MNPT x MPI™
Dimensions Mpi Size 1
1/4
Dimensions Mpi Size 3
1/4
Dimensions Npt Thread 2
1/4 - 18
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
3/4 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
