MPI™ Tube Stub Elbow 45 Degree - T7NBT7
MPI™ Tube Stub Elbow 45 Degree - T7NBT7
SKU:FIT-2b5572
Secure gas-tight 45° elbow for high-pressure applications, compliant with ASME standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
MPI™ Tube Stub Elbow 45 Degree - T7NBT7
$59.99
Quantity: 1
Claim Your Seller Account
MPI™ Tube Stub Elbow 45 Degree - T7NBT7
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

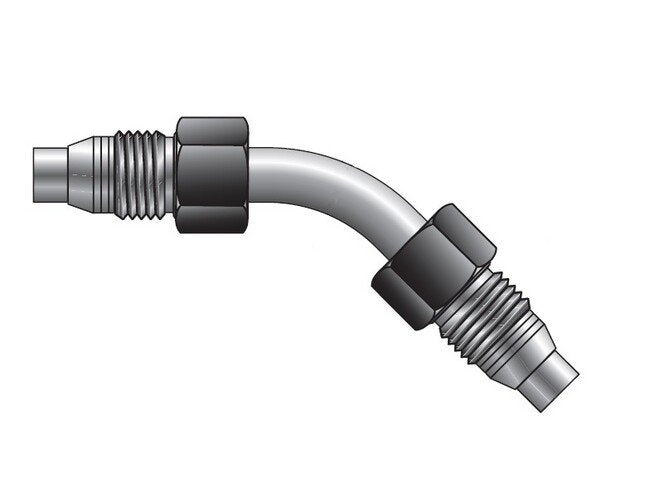

The MPI™ Tube Stub Elbow 45 Degree, T7NBT7, ensures secure, gas-tight connections suitable for applications demanding up to 15,000 psi (1035 bar) pressure. Specifically designed for off-shore oil and gas platforms, research labs, and other high-pressure facilities. Constructed with precision-engineered features like corrosion-resistant ferrules, molybdenum disulfide-coated nut, and long tube-support area for enhanced vibration resistance. Compliant with ASME standards, offering ease of assembly with hand tools or Parker Preset Tooling, ensuring reliability and efficiency.
Product Specifications
Dimensions Connection Type
MPI™ Tube

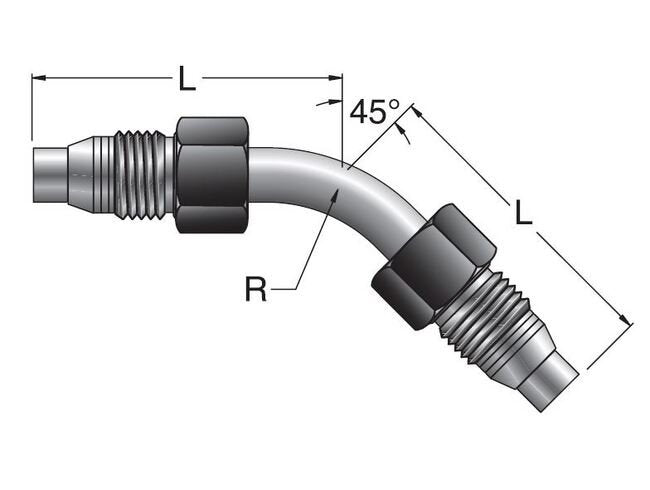

Dimensions L
8.00 in
Dimensions R
1.25 in
Dimensions Tube Size
3/8
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
