MPI™ Tube Stub to Male SAE O-ring Connector - T7HOA
MPI™ Tube Stub to Male SAE O-ring Connector - T7HOA
SKU:FIT-f734e3
Secure, gas-tight MPI™ Tube Stub to Male SAE O-ring Connector by Parker Hannifin for high-pressure applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
MPI™ Tube Stub to Male SAE O-ring Connector - T7HOA
$39.99
Quantity: 1
Claim Your Seller Account
MPI™ Tube Stub to Male SAE O-ring Connector - T7HOA
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

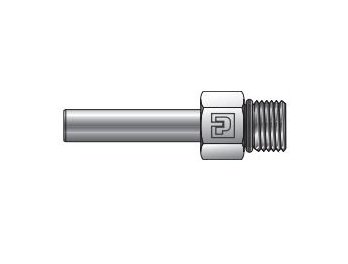

The MPI™ Tube Stub to Male SAE O-ring Connector - T7HOA by Parker Hannifin is a premium compression fitting designed for critical applications in industries like off-shore oil and gas, research, and more. With a working pressure of 12500 psig, these fittings are secure, gas-tight, and suitable for operating pressures up to 15,000 psi (1035 bar). Made from Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, they feature corrosion-resistant Parker Suparcase® ferrules, a molybdenum disulfide-coated nut, and ASME-compliant design. Each unit comes complete with ferrules and compression gland nut, ready for installation.
Product Specifications

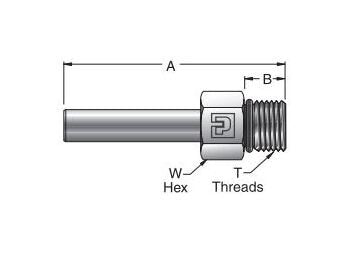

Dimensions A
2.72 in
Dimensions B
.55 in
Dimensions Connection Type
Tube Stub to Straight Thread
Dimensions Mpi Tube Stub
3/8
Dimensions Sae Oring End
1/2
Dimensions T Thread
3/4-16
Dimensions Working Mawp Pressure
12500 psig
Dimensions W Hex
7/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
