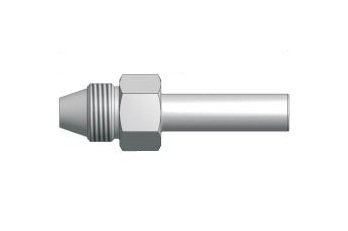

MPI™ X44 Male Tube Stub Fitting 44HT7
MPI™ X44 Male Tube Stub Fitting 44HT7
SKU:FIT-264d51
Secure and gas-tight MPI™ X44 Male Tube Stub fitting for pressures up to 15,000 psi. Corrosion-resistant, ASME compliant, and easy to install.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MPI™ X44 Male Tube Stub Fitting 44HT7
$49.99
Quantity: 1
Claim Your Seller Account
MPI™ X44 Male Tube Stub Fitting 44HT7
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ X44 Male Tube Stub by Parker Hannifin, with a patent (US 6851729 B2) for Medium Pressure Tube Fittings, ensures a secure and gas-tight connection for operating pressures up to 15,000 psi. Designed for demanding applications like off-shore oil platforms and research facilities, the MPI™ Fitting, available in 316 SS or 2507 Super Duplex materials, features corrosion-resistant ferrules, Molybdenum disulfide-coated nut, and ASME B31 engineering standards compliance. Easy to install with standard tools, the MPI™ X44 Male Tube Stub guarantees quality and longevity.
Product Specifications
Dimensions A
4.09 in
Dimensions Connection Type
Straight Thread to Tube Stub
Dimensions Mpi Size
3/4
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Thk
1 1/4 in
Dimensions X44 Adapter
3/4
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
