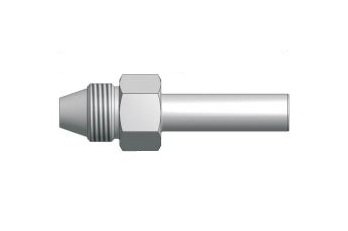

MPI™ X44 Male Tube Stub Fitting - 9/16", 15000 psig MAWP
MPI™ X44 Male Tube Stub Fitting - 9/16", 15000 psig MAWP
SKU:FIT-950e49
Secure and gas-tight, the MPI™ X44 Male Tube Stub Fitting is designed for medium-pressure applications, with corrosion-resistant components for durable performance.
Regular price
$46.99
Regular price
Sale price
$46.99
Unit price
per
Initiate Order
MPI™ X44 Male Tube Stub Fitting - 9/16", 15000 psig MAWP
$46.99
Quantity: 1
Claim Your Seller Account
MPI™ X44 Male Tube Stub Fitting - 9/16", 15000 psig MAWP
$46.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ X44 Male Tube Stub Fitting by Parker Hannifin is a premium medium-pressure compression fitting designed for secure, gas-tight connections in industries like off-shore oil and gas exploration and research labs. With a working pressure of 15000 psig, this fitting is ideal for handling liquids, gases, and chemicals. Each fitting comes complete with ferrules and compression gland nut, ensuring easy installation. Featuring corrosion-resistant Parker Suparcase® ferrules, a molybdenum disulfide-coated inverted nut, and adherence to ASME standards, the MPI™ X44 Male Tube Stub Fitting guarantees long-lasting performance and reliability.
Product Specifications
Dimensions A
3.60 in
Dimensions Connection Type
Straight Thread to Tube Stub
Dimensions Mpi Size
9/16
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Thk
1 in
Dimensions X44 Adapter
9/16
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
