MPI MAB Series Electric Actuator
MPI MAB Series Electric Actuator
SKU:VAL-8dd697
High-performance MPI MAB Series Electric Actuator for automated valve operation in various applications. CE & CSA approved.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI MAB Series Electric Actuator
$399.99
Quantity: 1
Claim Your Seller Account
MPI MAB Series Electric Actuator
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI MAB Series Electric Actuator is a high-performance solution for automated valve operation. Operating seamlessly at temperatures ranging from -4oF to 158oF, this actuator boasts a powder-coated aluminum housing and is CE and CSA approved. With a 3/4" NPT female conduit connection and an explosion-proof enclosure, it meets NEMA 7 and IP67 standards. Designed for durability and efficiency, this actuator integrates easily with control systems for automated monitoring and operation, making it ideal for a range of applications including laboratories, chemical research, and control panels.
Product Specifications

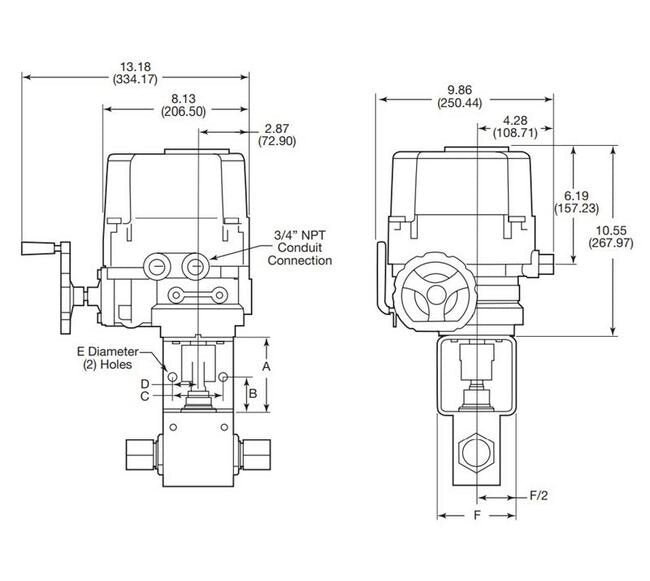

Dimensions A
3.00 in
Dimensions Actuator Height
10.55 in
Dimensions Actuator Length
13.18 in
Dimensions Actuator Width
9.86 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.53 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
