MPI MAB Series Electric Actuator - 240 VAC
MPI MAB Series Electric Actuator - 240 VAC
SKU:VAL-699b2d
Reliable MPI MAB Electric Actuator for precise valve control in various applications. CE & CSA approved for NEMA 4 & 4x.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MPI MAB Series Electric Actuator - 240 VAC
$249.99
Quantity: 1
Claim Your Seller Account
MPI MAB Series Electric Actuator - 240 VAC
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI MAB Series Electric Actuator in 240 VAC is designed for precise valve control in a wide range of applications. Operating temperature ranging from 0oF to 160oF ensures reliable performance. With CE & CSA approvals for NEMA 4 and 4x standards, this actuator features a powder-coated aluminum housing, manual override, and a 1/2" NPT female conduit connection. It interfaces seamlessly with control systems, offering automated operation and monitoring, making it ideal for laboratories, chemical research, and more.
Product Specifications

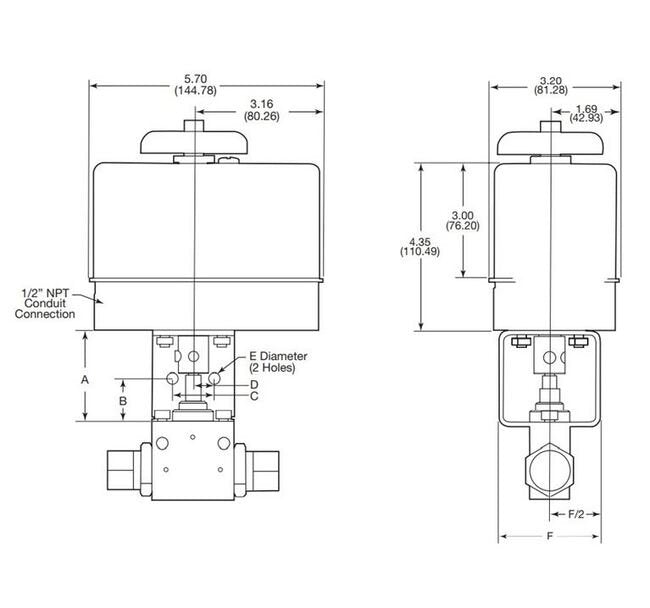

Dimensions A
2.50 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.25 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
2.50 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
