MPI MAC and MACB Check Valves
MPI MAC and MACB Check Valves
SKU:VAL-f1ad1e
Experience reliable reverse flow prevention with MPI MAC and MACB Check Valves. Ideal for high-temperature applications and tight shut-off requirements.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MPI MAC and MACB Check Valves
$129.99
Quantity: 1
Claim Your Seller Account
MPI MAC and MACB Check Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

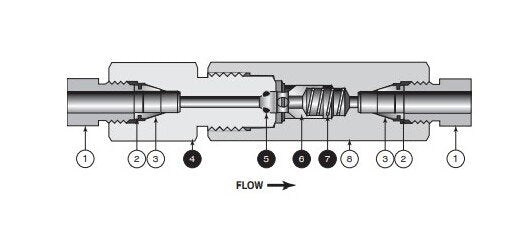

The MPI MAC and MACB Check Valves are engineered for exceptional performance in preventing reverse flow and ensuring leak-tight shut-off when needed. The MACB series features a Ball Check Valve with an all-metal design, capable of withstanding temperatures up to 1000°F. Its integral ball and poppet design guarantee positive, in-line seating without any 'chatter'. On the other hand, the MAC series boasts an O-Ring Check Valve that provides unidirectional flow and tight shut-off for both liquids and gases. Both series offer high reliability, with the MAC series having a cracking pressure of 20 psi and the option to customize up to 100 psi with special orders. These valves excel in applications where performance, durability, and precision matter most.

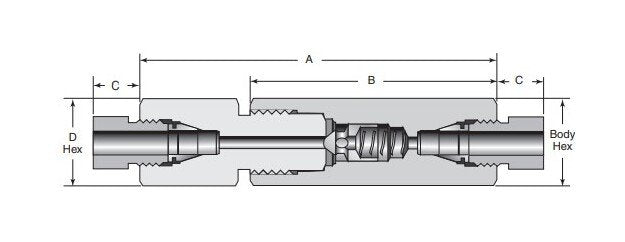

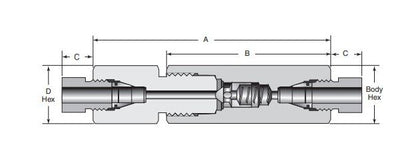

Product Specifications
Dimensions A
8.71 in
Dimensions B
6.25 in
Dimensions Body Hex
2 1/8 in
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D Hex
1 7/8 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
7.40
Dimensions Repair Kits
R16MACB
Dimensions Tubing Od
1
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
