MPI MARA Series Metal Seat Relief Valve (Factory Set) - 1/2 x 3/4
MPI MARA Series Metal Seat Relief Valve (Factory Set) - 1/2 x 3/4
SKU:VAL-1b7a25
Dependable MPI MARA Metal Seat Relief Valve for precise gas or liquid venting in industrial setups.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
MPI MARA Series Metal Seat Relief Valve (Factory Set) - 1/2 x 3/4
$279.99
Quantity: 1
Claim Your Seller Account
MPI MARA Series Metal Seat Relief Valve (Factory Set) - 1/2 x 3/4
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

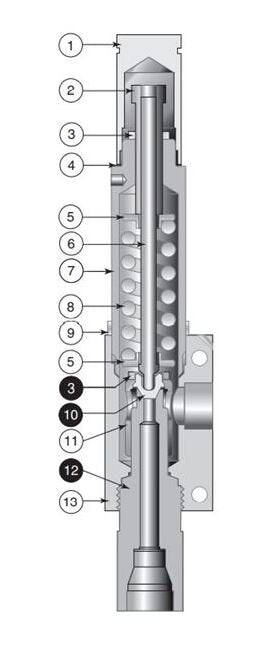

The MPI MARA Series Metal Seat Relief Valve offers reliable venting of gases or liquids within a pressure range of 3,000 to 15,000 psi. With a standard temperature range of -423ºF to 400ºF, these precision valves are ideal for pressure gas systems, cryogenic applications, and petrochemical setups. Designed to handle air, gases, steam, vapor, and liquids, these valves are factory set and offer a back pressure of up to 500 psi. A must-have for efficient and safe pressure relief in industrial environments, the MARA Series ensures precision and durability in operation.
Product Specifications
Dimensions A
10.62 in
Dimensions Back Pressure Max
500 psi | 34 bar
Dimensions Connection
MPI™ to FNPT
Dimensions Orifice Diameter
.188 in
Dimensions Pressure Rating Max
5000 psi | 345 bar
Dimensions Pressure Rating Min
3000 psi | 207 bar
Dimensions Repair Kits
R8MARA-5K-2507
Dimensions Size
1/2 x 3/4
Specifications Caution
Parker Relief Valves are preset and factory sealed. Warranty is voided if seal is broken by customer. Maximum system operating pressure should not exceed 90% of relief valve set pressure. Pressures in excess of this value may cause weepage resulting in damage to plug and seat.Care should be taken when locating a relief valve within a piping system to keep the relief valve as far from the pump as possible. Certain pumps create an end-of-stroke spike in pressure that is not detectable by common instrumentation. These spikes could cause premature failure of the relief valve.
