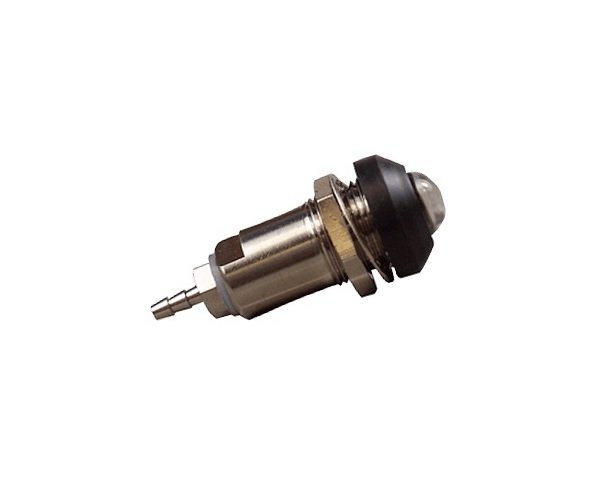

Panel-mountable compact indicator light used to monitor the presence of air pressure. The light will be clear in the absence of pressure, it will be bright when activated by approximately 10 psi. The inlet port size is 1/8" NPT or 1/16" Barb. The body can be Electroless Nickel-Plated Brass or Aluminum alloy. The panel mount hole is 0.500" and the maximum panel thickness is 0.250". The panel mount threads are 15/32-32. Maximum operating pressure is 125 psi and the maximum temperature is 140ºF. The display light is available in red or green and the panel mount bezel is available in black, white, or gray. It is supplied with one Electroless Nickel-Plated panel nut.One Size Only
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Bore Size
1/16 in
Technical Specs Inlet Port Size
1/8 in
Technical Specs Inlet Port Thread Type
National Pipe Thread (NPT)
Technical Specs Material
Aluminum Alloy | Nickel-Plated Brass
Technical Specs Maximum Operating Pressure
125 psi
Technical Specs Maximum Panel Thickness
0.250 in
Technical Specs Maximum Temperature
140 ºF
Technical Specs Mounting Hole Diameter
0.500 in
Technical Specs Series
MPI
Technical Specs Thread Size
15/32 in.-32
