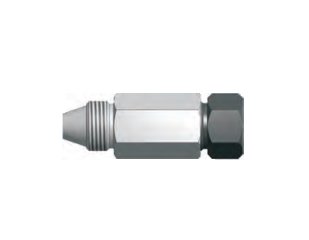

MPI X44HBMP7 Male Connector, 3/4" X44 Adapter
MPI X44HBMP7 Male Connector, 3/4" X44 Adapter
SKU:FIT-0d187a
Enhance industrial operations with the MPI X44HBMP7 Male Connector. Leak-free, high-pressure fitting designed for reliability in demanding environments.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
MPI X44HBMP7 Male Connector, 3/4" X44 Adapter
$45.99
Quantity: 1
Claim Your Seller Account
MPI X44HBMP7 Male Connector, 3/4" X44 Adapter
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI X44HBMP7 X44 Male Connector by Parker Hannifin offers a superior medium-pressure compression fitting solution designed for various industrial applications. With a pressure rating up to 15,000 psi, these MPI™ Fittings are ideal for use in demanding environments such as off-shore oil and gas exploration platforms and research facilities. Made of high-quality materials like 316 SS or optional 2507 Super Duplex, each fitting comes complete with ferrules and compression gland nut for easy installation. Featuring corrosion-resistant components and engineered to ASME Standards, these fittings ensure secure, leak-free connections and reliable performance under high pressure. Trust Parker Hannifin for quality instrumentation solutions.
Product Specifications

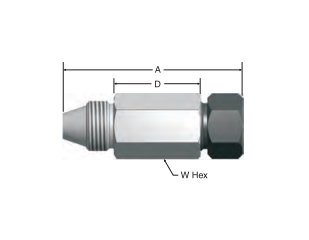

Dimensions A
3.89 in
Dimensions Connection Type
Straight Thread to MPI™
Dimensions D
1.96 in
Dimensions Mpi Size
3/4
Dimensions W Hex
1 3/8 in
Dimensions X44 Adapter
3/4
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
