MPTP-146-9 Series Silicone Test Plug w/ By-Pass
MPTP-146-9 Series Silicone Test Plug w/ By-Pass
SKU:HIG-361015
Efficiently test pipelines up to 250 psig with the MPTP-146-9 Series Silicone Test Plug. Nitrile seal ensures reliable testing without tube wall damage.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
MPTP-146-9 Series Silicone Test Plug w/ By-Pass
$39.99
Quantity: 1
Claim Your Seller Account
MPTP-146-9 Series Silicone Test Plug w/ By-Pass
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPTP-146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass is engineered for efficient pipeline testing up to 250 psig. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures reliable testing without damaging tube walls. With customizable configurations and seals including EPDM and Silicone, it meets diverse needs. Installation is effortless: insert into the pipe, tighten the compression nut, and test securely. Compliant with relevant industry standards and equipped with safety precautions, this plug is a dependable solution for your testing requirements.

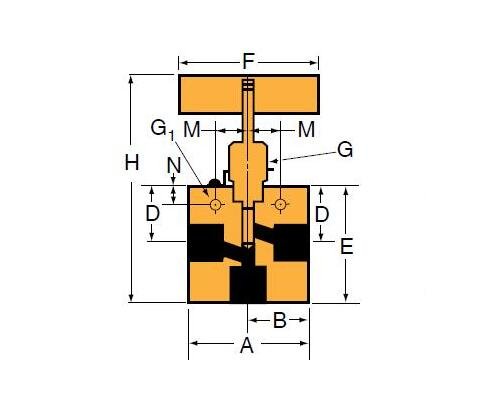

Product Specifications
Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
Pipe
Specifications D Height
3.31 in | 84.07 mm
Specifications E Height
5.88 in | 149.35 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
9.75 in | 247.65 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Pipe Size
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
4.40
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
