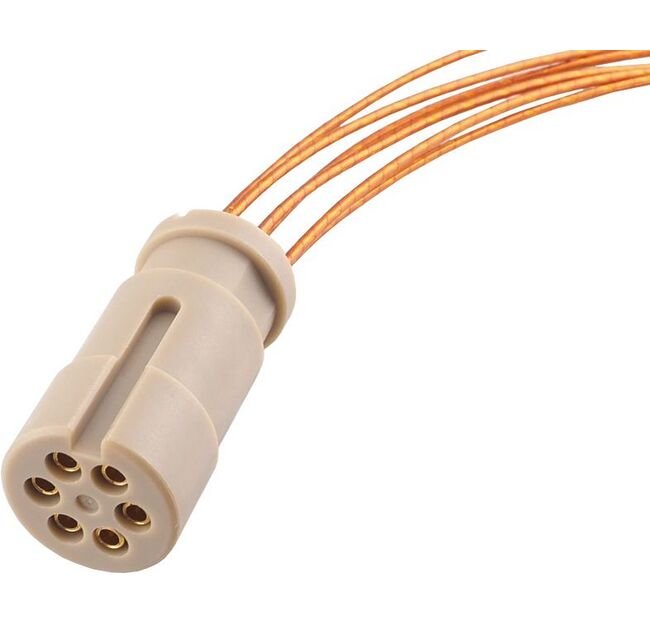

MS Type Insulation Insert with Socket Pins - 1.6mm Diameter
MS Type Insulation Insert with Socket Pins - 1.6mm Diameter
SKU:HER-b1a4ee
Enhance your vacuum connections with the MS Type Insulation Insert. Heat resistant, reliable, and versatile for vacuum side applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS Type Insulation Insert with Socket Pins - 1.6mm Diameter
$49.99
Quantity: 1
Claim Your Seller Account
MS Type Insulation Insert with Socket Pins - 1.6mm Diameter
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MS Type Insulation Insert with Socket Pins is a reliable solution designed for vacuum side applications. Featuring an acceptable plug diameter of 1.6mm, this component is available in various materials including Alumina, PEEK, and PTFE, offering exceptional heat resistance. Choose from 4 to 48 poles in MS Type configuration to suit your specific needs. Ideal for demanding environments, this insert ensures secure connections and optimal performance within vacuum containers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Reasons Why Our Vacuum Connectors Are Chosen
The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.
Specifications Acceptable Plug Diameter
0.063 in | 1.6 mm
Specifications Materials
Alumina | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE)
Specifications Number Of Pins
4 | 6 | 10 | 14 | 19 | 24 | 37 | 48
Specifications Operating Temperature
-55 to 150 º
Specifications Type
MS
