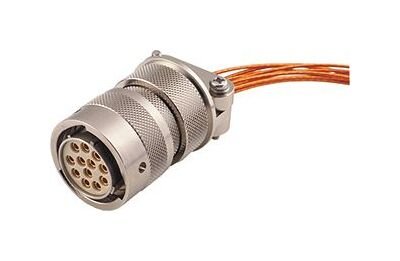

MS Type Vacuum Side Connector Insert with Metal Shell and Socket Pins
MS Type Vacuum Side Connector Insert with Metal Shell and Socket Pins
SKU:HER-946668
Reliable MS Type Vacuum Connector Insert for secure and flexible vacuum side applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS Type Vacuum Side Connector Insert with Metal Shell and Socket Pins
$49.99
Quantity: 1
Claim Your Seller Account
MS Type Vacuum Side Connector Insert with Metal Shell and Socket Pins
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MS Type Vacuum Side Connector Insert with Metal Shell and Socket Pins is a premium solution designed for demanding vacuum side applications. This connector features an acceptable plug diameter of 1.6mm, ensuring secure and reliable connections. Choose between aluminum or SUS304 shell materials and PEEK, PTFE, or Alumina inserts for flexibility. Available in various pole configurations, from 4 to 48 poles, this connector caters to diverse project requirements. With a wide operating temperature range of -55 to 150º, this connector excels in extreme conditions. It is a top choice for those seeking high-quality hermetic connectors for critical applications.
Product Specifications
Reasons Why Our Vacuum Connectors Are Chosen
The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.
Specifications Acceptable Plug Diameter
0.063 in | 1.6 mm
Specifications Materials
Alumina | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE)
Specifications Number Of Pins
4 | 6 | 10 | 14 | 19 | 24 | 37 | 48
Specifications Operating Temperature
-55 to 150 º
Specifications Shell Material
Aluminum | Steel Use Stainless (SUS304)
Specifications Type
MS
