MS Type Vacuum Side Insulation Insert with Socket Pins - 2.4mm Diameter

Name: MS Type Vacuum Side Insulation Insert with Socket Pins - 2.4mm Diameter
Brand: JC CHERRY INC.
SKU: HER-6c4758
Price: 49.99 USD
Availability: OutOfStock

SKU:HER-6c4758

Precision MS Type Vacuum Insulation Insert for reliable connectivity in high-demand environments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

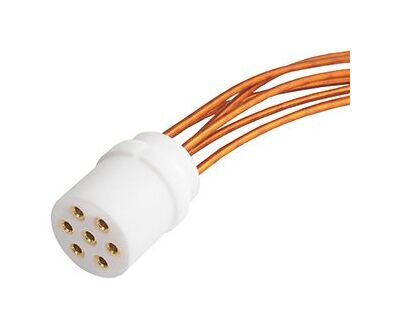

The MS Type Vacuum Side Insulation Insert with Socket Pins and Wires is a precision-engineered solution designed for vacuum applications. Available in Alumina, PEEK, or PTFE, this insert offers varying levels of heat resistance. With options for 4, 7, or 8 pins, it ensures reliable connectivity in challenging environments. Trusted by leading brands like JCC, this connector excels in high current and high voltage applications, meeting the demanding standards of government and institutional procurement.

Product Specifications

Reasons Why Our Vacuum Connectors Are Chosen

The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.

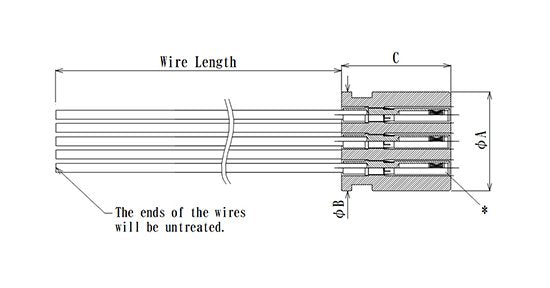

Specifications Acceptable Plug Diameter

0.094 in | 2.4 mm

Specifications Materials

Alumina | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE)

Specifications Number Of Pins

4 | 7 | 8

Specifications Operating Temperature

-55 to 150 º

MS Type Vacuum Side Insulation Insert with Socket Pins - 2.4mm Diameter
