MS20663 Series 0.127 Inch (in) Diameter A Double Shank Ball
MS20663 Series 0.127 Inch (in) Diameter A Double Shank Ball
SKU:MS2-a4c360
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20663 Series 0.127 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Claim Your Seller Account
MS20663 Series 0.127 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

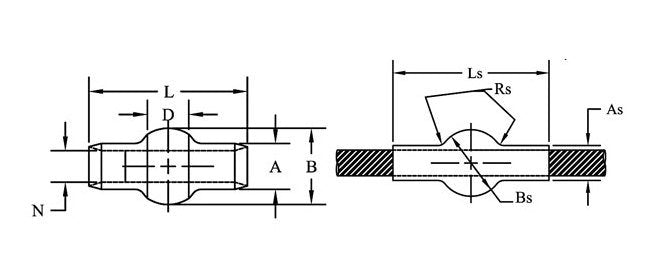

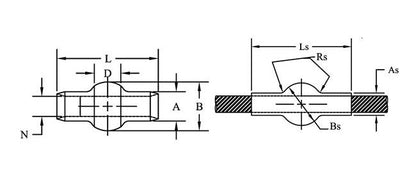

Product Specifications
Specifications Cable Diameter
1/16 in
Specifications Diameter A
0.127 in
Specifications Diameter As
0.112 in
Specifications Diameter B
0.207 in
Specifications Diameter N
0.073 in
Specifications Dimension L
0.362 in
Specifications Dimension L Tolerance
±0.0075 in
Specifications Number Of Shank
2
Specifications Radius Reference Rs
0.014 in
Specifications Reference D
0.114 in
Specifications Reference Ls
0.390 in
Specifications Spherical Diameter Bs
0.19 in
Specifications Type
Shank
