MS20663 Series 0.163 Inch (in) Diameter A Double Shank Ball
MS20663 Series 0.163 Inch (in) Diameter A Double Shank Ball
SKU:MS2-08177d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20663 Series 0.163 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Claim Your Seller Account
MS20663 Series 0.163 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

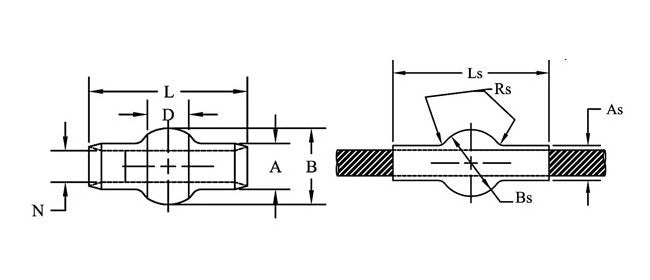

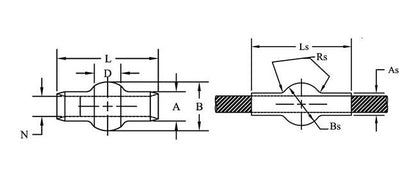

Product Specifications
Specifications Cable Diameter
3/32 in
Specifications Diameter A
0.163 in
Specifications Diameter As
0.143 in
Specifications Diameter B
0.277 in
Specifications Diameter N
0.104 in
Specifications Dimension L
0.525 in
Specifications Dimension L Tolerance
±0.0075 in
Specifications Number Of Shank
2
Specifications Radius Reference Rs
0.019 in
Specifications Reference D
0.152 in
Specifications Reference Ls
0.578 in
Specifications Spherical Diameter Bs
0.253 in
Specifications Type
Shank
