MS20663 Series 0.218 Inch (in) Diameter A Double Shank Ball
MS20663 Series 0.218 Inch (in) Diameter A Double Shank Ball
SKU:MS2-c82afa
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20663 Series 0.218 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Claim Your Seller Account
MS20663 Series 0.218 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

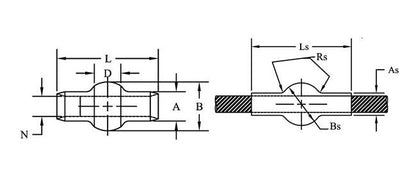

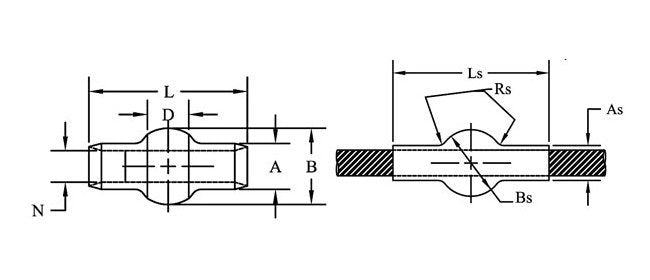

Product Specifications
Specifications Cable Diameter
1/8 in
Specifications Diameter A
0.218 in
Specifications Diameter As
0.19 in
Specifications Diameter B
0.345 in
Specifications Diameter N
0.139 in
Specifications Dimension L
0.688 in
Specifications Dimension L Tolerance
±0.0075 in
Specifications Number Of Shank
2
Specifications Radius Reference Rs
0.023 in
Specifications Reference D
0.1895 in
Specifications Reference Ls
0.765 in
Specifications Spherical Diameter Bs
0.315 in
Specifications Type
Shank
