MS20663 Series 0.439 Inch (in) Diameter A Double Shank Ball
MS20663 Series 0.439 Inch (in) Diameter A Double Shank Ball
SKU:MS2-3cebd9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20663 Series 0.439 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Claim Your Seller Account
MS20663 Series 0.439 Inch (in) Diameter A Double Shank Ball
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

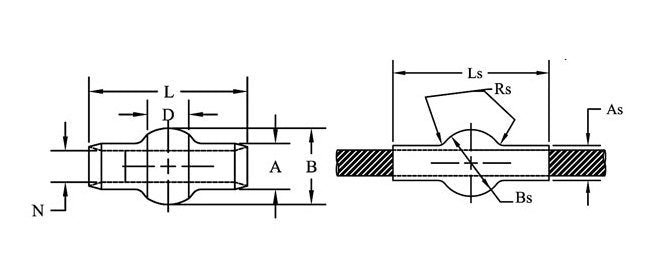

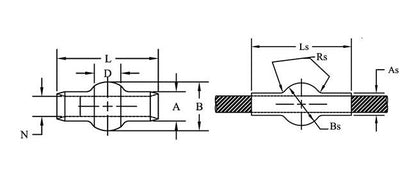

Product Specifications
Specifications Cable Diameter
9/32 in
Specifications Diameter A
0.439 in
Specifications Diameter As
0.382 in
Specifications Diameter B
0.694 in
Specifications Diameter N
0.297 in
Specifications Dimension L
1.497 in
Specifications Dimension L Tolerance
±0.0075 in
Specifications Number Of Shank
2
Specifications Radius Reference Rs
0.046 in
Specifications Reference D
0.3775 in
Specifications Reference Ls
1.719 in
Specifications Spherical Diameter Bs
0.632 in
Specifications Type
Shank
