MS20663 Stainless Steel Double Shank Balls for Wire Rope, Mil Spec Compliant

Name: MS20663 Stainless Steel Double Shank Balls for Wire Rope, Mil Spec Compliant
Brand: Lexco Cable Manufacturing
SKU: MIL-aeaad6
Price: 12.99 USD
Availability: OutOfStock

SKU:MIL-aeaad6

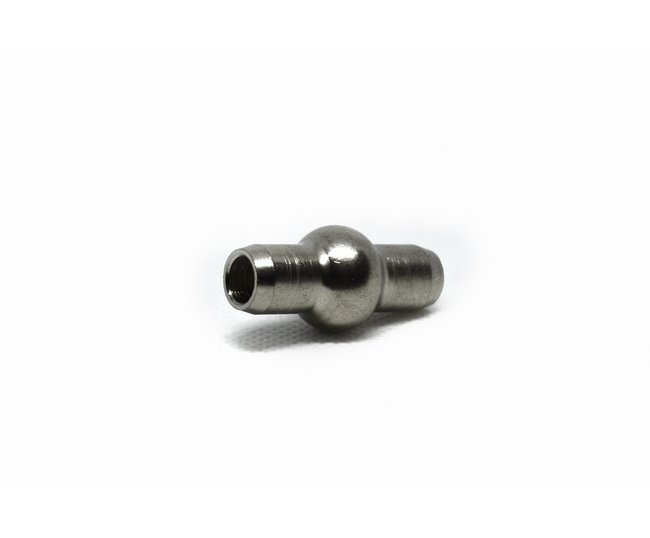

Mil Spec compliant stainless steel double shank balls for secure wire rope crimping.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

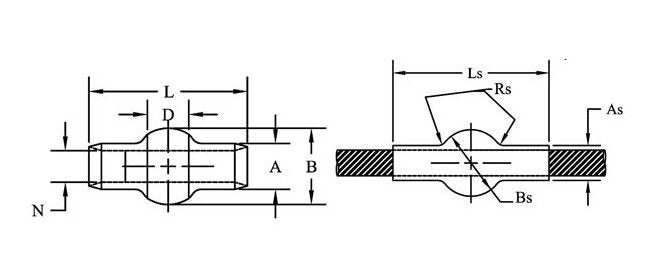

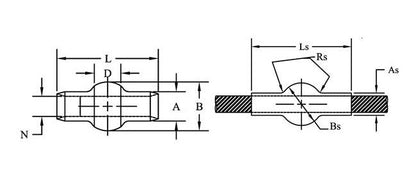

Upgrade your wire rope installations with these dependable stainless steel double shank balls. Compliant with Military Specification MS20663-C4, these precision-engineered balls offer Before Swage Dimensions A: 0.218", B: 0.345", D: 0.1895", L: 0.688", N: 0.139". After Swage Dimensions As: 0.19", Bs: 0.315", Ls: 0.765". With a maximum radial dimension Rs of 0.023", these balls are ideal for durable and secure crimping applications.

Product Specifications

Specifications As Diam

0.19

Specifications A Diam

0.218

Specifications Bs Spher Diam

0.315

Specifications B Diam

0.345

Specifications Cable Dia

1/8

Specifications D

0.1895

Specifications Lbspc Before Swaging

0.0094

Specifications Ls Ref

0.765

Specifications L 0075

0.688

Specifications Mil Spec

MS20663-C4

Specifications N Diam

0.139

Specifications Rs Max Rad

0.023

CAGE

0T9L4

NAICS

332510

PSC

4030
