MS20664 Series 0.352 Inch (in) Diameter A Single Shank Ball
MS20664 Series 0.352 Inch (in) Diameter A Single Shank Ball
SKU:MS2-49fd38
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20664 Series 0.352 Inch (in) Diameter A Single Shank Ball
$49.99
Quantity: 1
Claim Your Seller Account
MS20664 Series 0.352 Inch (in) Diameter A Single Shank Ball
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

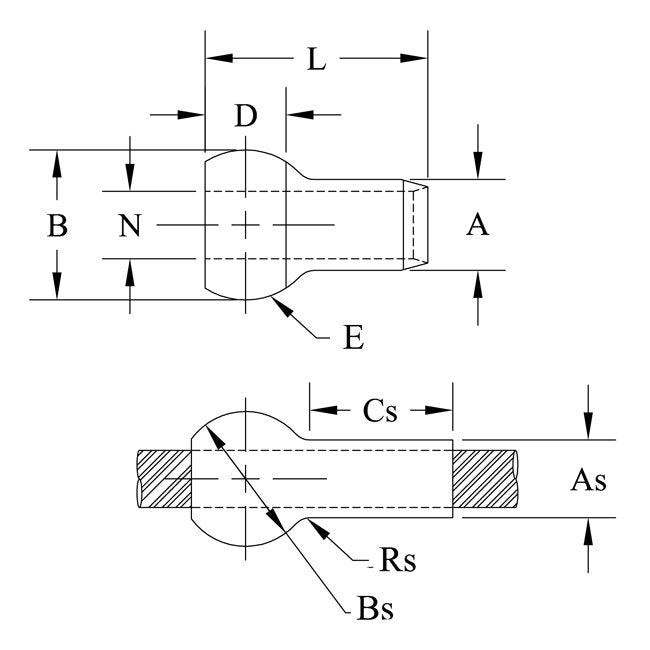

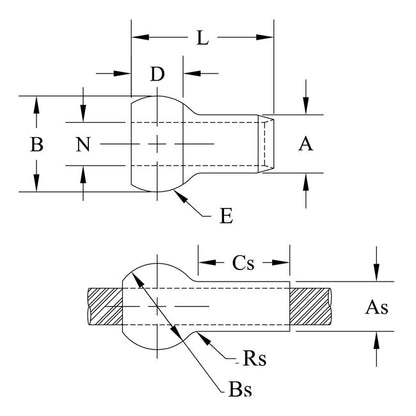

Product Specifications
Specifications Cable Diameter
7/32 in
Specifications Diameter A
0.352 in
Specifications Diameter As
0.302 in
Specifications Diameter B
0.56 in
Specifications Diameter N
0.233 in
Specifications Dimension L
0.846 in
Specifications Number Of Shank
1
Specifications Radius Reference E
0.22 in
Specifications Radius Reference Rs
0.038 in
Specifications Reference Cs
0.547 in
Specifications Reference D
0.3025 in
Specifications Spherical Diameter Bs
0.505 in
Specifications Type
Shank
