MS20664 Series 0.444 Inch (in) Diameter A Single Shank Ball
MS20664 Series 0.444 Inch (in) Diameter A Single Shank Ball
SKU:MS2-93fe32
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20664 Series 0.444 Inch (in) Diameter A Single Shank Ball
$49.99
Quantity: 1
Claim Your Seller Account
MS20664 Series 0.444 Inch (in) Diameter A Single Shank Ball
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

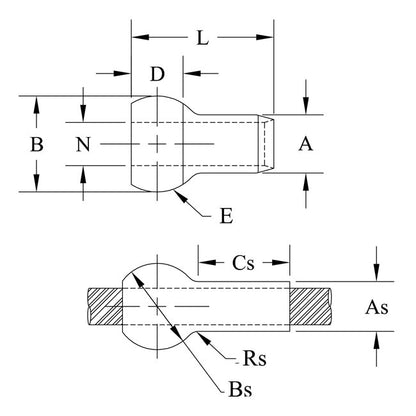

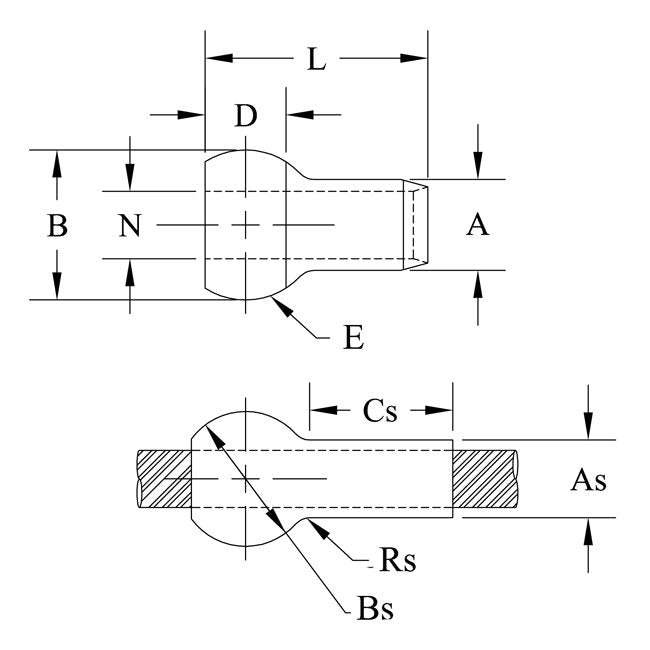

Product Specifications
Specifications Cable Diameter
9/32 in
Specifications Diameter A
0.444 in
Specifications Diameter As
0.382 in
Specifications Diameter B
0.699 in
Specifications Diameter N
0.297 in
Specifications Dimension L
1.078 in
Specifications Number Of Shank
1
Specifications Radius Reference E
0.275 in
Specifications Radius Reference Rs
0.046 in
Specifications Reference Cs
0.75 in
Specifications Reference D
0.3775 in
Specifications Spherical Diameter Bs
0.632 in
Specifications Type
Shank
