MS20667 Fork Ends - Military Specification Wire Rope Crimping Connectors

MS20667 Fork Ends - Military Specification Wire Rope Crimping Connectors

SKU:MIL-442c25

High-quality MS20667 Fork Ends for secure wire rope crimping. Military Specification compliant.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

MS20667 Fork Ends - Military Specification Wire Rope Crimping Connectors

MS20667 Fork Ends - Military Specification Wire Rope Crimping Connectors

$29.99

Quantity: 1

Claim Your Seller Account

MS20667 Fork Ends - Military Specification Wire Rope Crimping Connectors

MS20667 Fork Ends - Military Specification Wire Rope Crimping Connectors

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

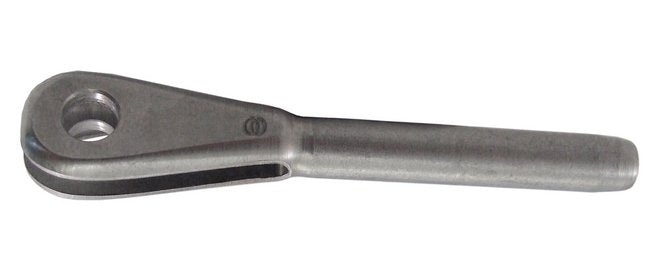

The MS20667 Fork Ends are precision-engineered connectors designed for crimping onto wire ropes or aircraft cables with a diameter of 9/16 inches. Featuring a durable construction with dimensions meeting stringent military specifications, these fork ends ensure secure connections that withstand demanding applications. With A Diameter of .984 inches, F dimension of 1.241 inches, and a weight of 2.14 lbs per piece, these fork ends offer reliability and performance in critical operations. Compliant with Federal/DoD procurement standards and suitable for GSA requirements, these connectors are ideal for military and institutional applications.

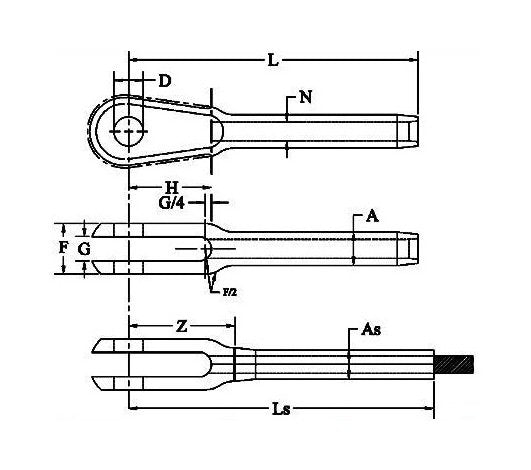

Product Specifications

Specifications As
.875
Specifications A Diam
.984
Specifications D Diam
.750
Specifications F 010 005
1.241
Specifications G 003
.567
Specifications H
2.375
Specifications Lbs Per Piece
2.14
Specifications Ls
8.34
Specifications L 020 000
7.75
Specifications N Diam
.594
Specifications To Fit Wire Rope Dia In
9/16
CAGE
0T9L4
NAICS
332510
PSC
4030
