MS20668 Series 0.563 Inch (in) Diameter A Eye End
MS20668 Series 0.563 Inch (in) Diameter A Eye End
SKU:MS2-e17640
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20668 Series 0.563 Inch (in) Diameter A Eye End
$49.99
Quantity: 1
Claim Your Seller Account
MS20668 Series 0.563 Inch (in) Diameter A Eye End
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

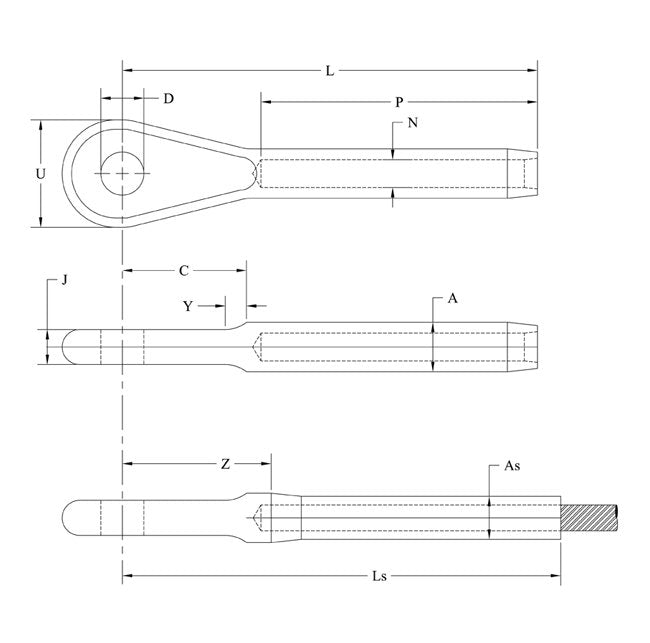

Product Specifications
Specifications Cable Diameter
9/32 in
Specifications Diameter A
0.563 in
Specifications Diameter As
0.500 in
Specifications Diameter As Tolerance
-0.008 in | +0.000 in
Specifications Diameter D
0.438 in
Specifications Diameter N
0.297 in
Specifications Dimension C
1.257 in
Specifications Dimension C Tolerance
0.020 in
Specifications Dimension J
0.322 in
Specifications Dimension L
4.153 in
Specifications Dimension L Tolerance
+0.020 in | -0.000 in
Specifications Dimension P
2.761 in
Specifications Dimension U
1.109 in
Specifications Dimension U Tolerance
-0.010 in | +0.025 in
Specifications Dimension Y
0.251 in
Specifications Minimum Dimension Z
1.465 in
Specifications Reference Ls
4.512 in
Specifications Style
Eye
