MS20668 Series 1.593 Inch (in) Diameter A Eye End
MS20668 Series 1.593 Inch (in) Diameter A Eye End
SKU:MS2-03a15f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS20668 Series 1.593 Inch (in) Diameter A Eye End
$49.99
Quantity: 1
Claim Your Seller Account
MS20668 Series 1.593 Inch (in) Diameter A Eye End
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

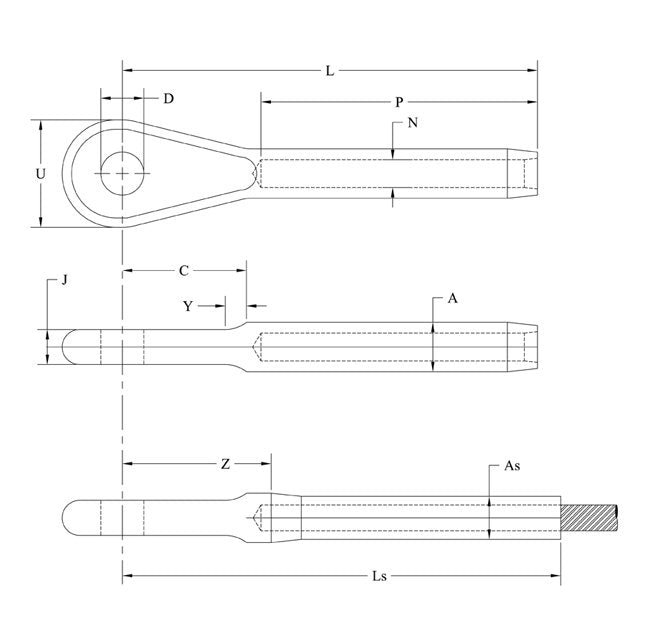

Product Specifications
Specifications Cable Diameter
7/8 in
Specifications Diameter A
1.593 in
Specifications Diameter As
1.437 in
Specifications Diameter As Tolerance
-0.012 in | +0.000 in
Specifications Diameter D
1.000 in
Specifications Diameter N
0.921 in
Specifications Dimension C
3.515 in
Specifications Dimension C Tolerance
0.020 in
Specifications Dimension J
0.750 in
Specifications Dimension L
11.53 in
Specifications Dimension L Tolerance
+0.020 in | -0.000 in
Specifications Dimension P
7.166 in
Specifications Dimension U
3.125 in
Specifications Dimension U Tolerance
-0.010 in | +0.025 in
Specifications Dimension Y
0.675 in
Specifications Minimum Dimension Z
4.437 in
Specifications Reference Ls
12.29 in
Specifications Style
Eye
