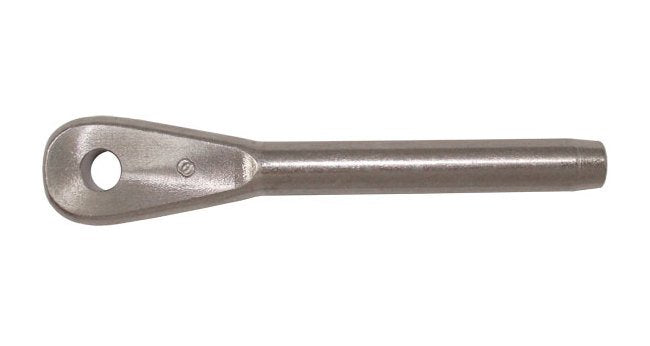

MS20668 Wire Rope Eye Ends
MS20668 Wire Rope Eye Ends
SKU:MIL-384f65
Premium MS20668 Wire Rope Eye Ends for 1" diameter ropes, meeting military specifications for durability and reliability.
Regular price

            $24.95


          Regular price






          Sale price

          $24.95



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The MS20668 Wire Rope Eye Ends are meticulously crafted for precise crimping onto wire ropes and aircraft cables with a diameter of 1 inch. With a durable construction of 3.51 inches in U diameter and 1.125 inches in D diameter, these eye ends offer a secure fit and reliable performance. Designed with exacting standards, the MS20668 Eye Ends boast precise measurements that meet stringent military specifications, ensuring exceptional quality and performance in demanding applications.

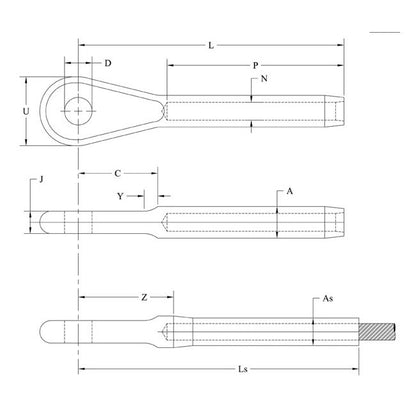

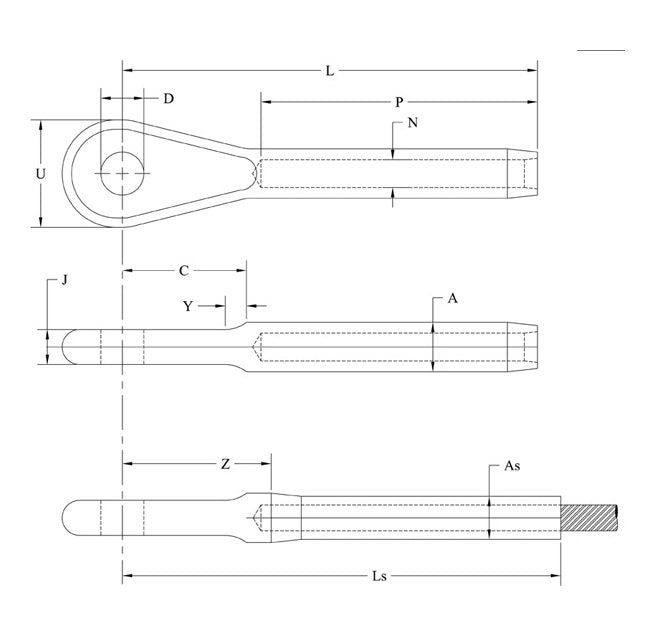

Product Specifications
                  Specifications A

                1.812

                  Specifications As

                1.625 +.000 -.012

                  Specifications C 020

                3.937

                  Specifications D Diam

                1.125

                  Specifications J

                0.844

                  Specifications Lbs Per Piece

                8.25

                  Specifications Ls

                14.062

                  Specifications L 020 000

                13.156

                  Specifications N Diam

                1.046

                  Specifications P In

                8.229

                  Specifications To Fit Wire Rope Dia In

                1

                  Specifications U 025 010 Diam

                3.51

                  Specifications Y

                0.775

                  Specifications Z

                5

                  CAGE

                0T9L4

                  NAICS

                332510

                  PSC

                4030
